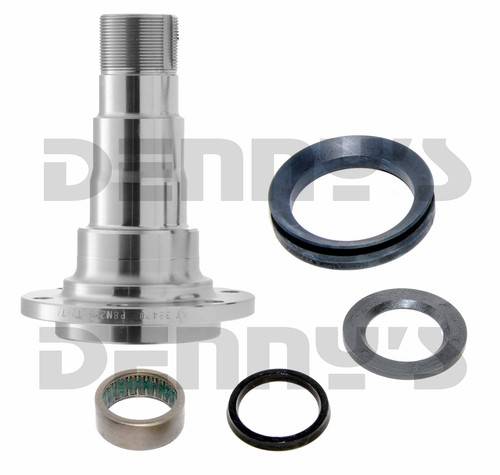

Dana Spicer 706570X SPINDLE with bearing and seals fits 1977 to 1992 Jeep J10, J20, Cherokee, Honcho, Wagoneer, Grand Wagoneer with disc brakes DANA 44 Front Axle - FREE SHIPPING

Part Number:
706570X

UPC:

Your Cost $263.50

Sorry, sold out

STATUS: Discontinued Item...See other choices listed

DANA SPICER 706570X

Fits JEEP J10, J20, Cherokee, Honcho, Wagoneer, Grand Wagoneer with disc brakes Dana 44 Front axle
- 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992

SPINDLE with bearing and seal kit
- Comes with 706527X spindle bearing and seal kit
- Comes with inner spindle bearing installed at the proper depth.
6 bolt holes
Big bearing style

Dana Spicer 706570X SPINDLE with bearing and seals fits 1977 to 1992 Jeep J10, J20, Cherokee, Honcho, Wagoneer, Grand Wagoneer with disc brakes DANA 44 Front Axle - FREE SHIPPING

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: Discontinued Item...See other choices listed

YOUR COST: $263.50

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

DANA SPICER 706570X

Fits JEEP J10, J20, Cherokee, Honcho, Wagoneer, Grand Wagoneer with disc brakes Dana 44 Front axle
- 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992

SPINDLE with bearing and seal kit
- Comes with 706527X spindle bearing and seal kit
- Comes with inner spindle bearing installed at the proper depth.
6 bolt holes
Big bearing style

DIMENSIONS

A = 1-5/8 in. OD for Outer Wheel Bearing
B = 2 in. OD for Inner Wheel Bearing
C = 2-1/2 in. OD for Seal
D = 3-3/8 in.
E = 7/16 in.
F = 3/8 in.
G = 5-5/8 in.
H = 6-7/16 in.
K = 4-3/4 in.
Bolt Holes = 6
Bolt Hole Diameter = .390 in.

How to Measure a 4X4 Front Axle Spindle at Denny's Driveshafts
