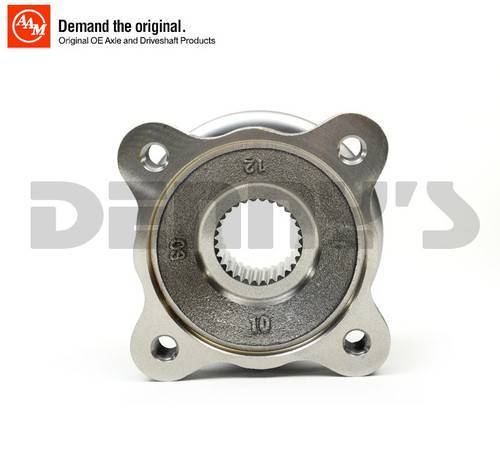

AAM 40062272 Pinion Flange 30 splines fits 2003 to 2011 RAM 2500, 3500 with 11.5 inch 14 bolt rear end

Part Number:
40062272

UPC:

Your Cost $61.95

STATUS: IN STOCK

AAM 40062272

Description
- Pinion Flange
- 30 splines
Application
- Ram 2500, 3500
Fits Years
- 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011
Fits Axle Model
- 10.5 inch
  - 2007, 2008, 2009, 2010, 2011
- 11.5 inch
  - 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011

OEM Numbers and Replacement Numbers
- 05127609AD, 05086802AB, 74002855, 40047864 5127609AA, 40023921, 5127609AB, 40030446, 74003921, 05127609AC
Replaces obsolete AAM part numbers 40047864, 40030446
40062272 pinion flange is 2.5 inches measured from flange face to end of spline. This is 1/2 inch shorter than some of the obsolete OEM flanges but this is all that is currently available. Please note that your driveshaft slip spline should easily handle this length change without any issues otherwise lengthening the driveshaft will be necessary.

AAM 40062272 Pinion Flange 30 splines fits 2003 to 2011 RAM 2500, 3500 with 11.5 inch 14 bolt rear end

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $61.95

AAM 40062272

Description
- Pinion Flange
- 30 splines
Application
- Ram 2500, 3500
Fits Years
- 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011
Fits Axle Model
- 10.5 inch
  - 2007, 2008, 2009, 2010, 2011
- 11.5 inch
  - 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011

OEM Numbers and Replacement Numbers
- 05127609AD, 05086802AB, 74002855, 40047864 5127609AA, 40023921, 5127609AB, 40030446, 74003921, 05127609AC
Replaces obsolete AAM part numbers 40047864, 40030446
40062272 pinion flange is 2.5 inches measured from flange face to end of spline. This is 1/2 inch shorter than some of the obsolete OEM flanges but this is all that is currently available. Please note that your driveshaft slip spline should easily handle this length change without any issues otherwise lengthening the driveshaft will be necessary.

AAM 40062272 Pinion Flange 30 splines fits 2003 to 2011 RAM 2500, 3500 with 11.5 inch 14 bolt rear end
