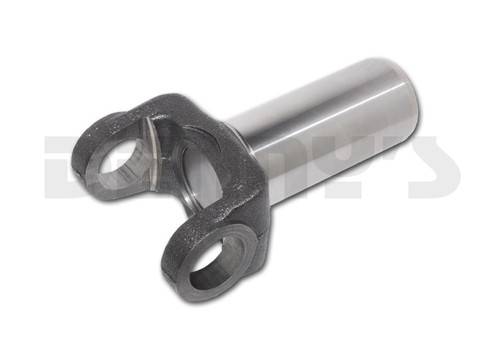

2060662 Transmission Slip Yoke 1310 series 32 splines fits T-400, 4L80, 4L85, 6L80 Light TRUCK Transmissions that originallly had a bolt on yoke at rear output

Part Number:
2060662

UPC:

Your Cost $89.95

Sorry, sold out

CLICK HERE to be NOTIFIED when this item is available

STATUS: SOLD OUT...More Coming Soon

2060662

1310 Series 32 spline T-400, 4L80, 4L85, 6L80 Light TRUCK Transmission Slip yoke

Specifically designed to replace the factory bolt on yoke for T-400, 4L80, 4L85, 6L80 Light Truck Transmissions with the Threaded Hole in the center of the Output shaft.
DOES NOT FIT.... T400/475 with the emergency brake and or roller bearing in the tailshaft housing as found in the RV Motor Home Transmission and Medium Truck Transmissions
>>>> Please consult a transmission rebuilder to see what is required to convert it to a normal light truck tailshaft and tailshaft housing.
Replaces the truck style bolt on yoke with a normal car style slip yoke which will allow for proper slip travel and bushing contact for best performance. A must have when using any T-400, 4L80, 4L85 or 6L80 truck transmission with the threaded hole in the output shaft.

With this counterbored slip yoke you can now use a normal car style driveshaft.

2060662 Transmission Slip Yoke 1310 series 32 splines fits T-400, 4L80, 4L85, 6L80 Light TRUCK Transmissions that originallly had a bolt on yoke at rear output

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: SOLD OUT...More Coming Soon

YOUR COST: $89.95

2060662

1310 Series 32 spline T-400, 4L80, 4L85, 6L80 Light TRUCK Transmission Slip yoke

Designed to replace the factory bolt on yoke for T-400, 4L80, 4L85, 6L80 Light Truck Transmissions with the Threaded Hole in the center of the Output shaft.
DOES NOT FIT.... T400/475 with the emergency brake and or roller bearing in the tailshaft housing as found in the RV Motor Home Transmission and Medium Truck Transmissions
>>>> Please consult a transmission rebuilder to see what is required to convert it to a normal light truck tailshaft and tailshaft housing.
Replaces the truck style bolt on yoke with a normal car style slip yoke which will allow for proper slip travel and bushing contact for best performance. A must have when using any T-400, 4L80, 4L85 or 6L80 truck transmission with the threaded hole in the output shaft.

With this counterbored slip yoke you can now use a normal car style driveshaft.

This slip yoke will slide all the way into the transmission.

We strongly suggest that you remove the O-Ring on the output shaft because with this slip yoke it is no longer necessary.
Removing the O-Ring will to allow the lubrication to get to the splines...and this is very important.

To determine correct driveshaft center to center length for this slip yoke

Push the slip yoke all the way into transmission and pull it out 3/4 inch minimum to 1 inch maximum. Now measure from center of u-joint hole in slip yoke to the center of the u-joint at the rear end yoke. This dimension will be the correct center to center required for your driveshaft to fit correctly using this slip yoke.

We designed this style slip yoke to solve this problem over 35 years ago when T400 Truck Transmissions first started to be used in cars

Barrel Diameter = 1.885 inches
Fits U-joint cap diameter = 1.062 inches
Fits U-joint width = 3.219 inches
Outside Snap Ring Style
Series = 1310
Spline count = 32
Counterbored

2060662 Transmission Slip Yoke 1310 series 32 splines fits T-400, 4L80, 4L85, 6L80 Light TRUCK Transmissions that originallly had a bolt on yoke at rear output

You May Also Need These Parts to Complete the Job

Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.10	11-528D Combination Universal Joint to connect 1310 to 1330 series Part#: 11-528D $24.95

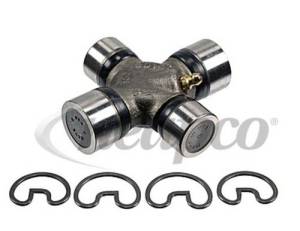

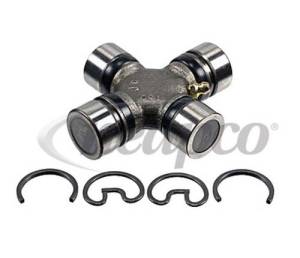

1310 to 1350 Series Combination U-joint...Neapco Greaseable Part#: 11-131050 ~~$40.95~~ $36.95	Neapco 3-3130 Greaseable Combination u-joint to connect 1310 series to 3R Series Part#: 3-3130 $25.95

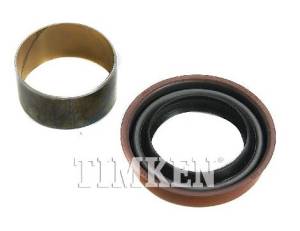

TIMKEN 9449 REAR Output Seal TH-400, 4L80, 4L85 with 32 Spline output Part#: 9449 $6.46	TIMKEN 5208 REAR Output SEAL and BUSHING TH-400 1964-1979 with 32 Spline output Part#: 5208 $17.73
Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $19.66	Neapco 1-0153 Greaseable universal joint 1310 series 3.219 x 1.062 outside snap rings Part#: 1-0153 ~~$15.76~~ $14.95
