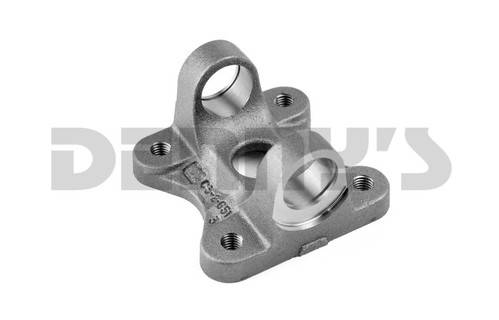

Dana Spicer 3-2-1619 Flange Yoke with THREADED Mounting Holes 1350 series fits Ford with 4.250 inch bolt circle
Part Number:
3-2-1619


UPC:
023913232351
Your Cost $61.12 Sale Price $51.19
You Save $9.93
STATUS:  IN STOCK

DANA SPICER 3-2-1619

1350 Series Flange Yoke

  • A - Flange or Swing Diameter = 5.360 inches
  • B - Bolt Circle Diameter = 4.250 inches
    • Bolt Hole Diameter = 0.472 inches
    • Bolt Holes = 4
    • Bolt Holes = THREADED
  • C - Center Pilot Hole Diameter = 2 inches
    • Center Pilot = FEMALE
  • Series = 1350
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 3.625 inches
    • D - U-Joint Bearing cap diameter = 1.187 inches
  • G - Center of u-joint bore to Face of flange = 1.625 inches
  • X - 3 inches
  • Y - 3 inches
  • Special Notes: 12 MM THREADED HOLES, METRIC FLANGE
    • Dimensionally the same as N3-2-1579 but 3-2-1619 has the threaded mounting holes
    • Dimensionally the same as Neapco N3-2-1619






Spicer
Dana Spicer 3-2-1619 Flange Yoke with THREADED Mounting Holes 1350 series fits Ford with 4.250 inch bolt circle
Dana Spicer 3-2-1619 Flange Yoke with THREADED Mounting Holes 1350 series fits Ford with 4.250 inch bolt circle
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $61.12 Sale Price $51.19
You Save $9.93

DANA SPICER 3-2-1619

1350 Series Flange Yoke

  • A - Flange or Swing Diameter = 5.360 inches
  • B - Bolt Circle Diameter = 4.250 inches
    • Bolt Hole Diameter = 0.472 inches
    • Bolt Holes = 4
    • Bolt Holes = THREADED
  • C - Center Pilot Hole Diameter = 2 inches
    • Center Pilot = FEMALE
  • Series = 1350
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 3.625 inches
    • D - U-Joint Bearing cap diameter = 1.187 inches
  • G - Center of u-joint bore to Face of flange = 1.625 inches
  • X - 3 inches
  • Y - 3 inches
  • Special Notes: 12 MM THREADED HOLES, METRIC FLANGE
    • Dimensionally the same as N3-2-1579 but 3-2-1619 has the threaded mounting holes
    • Dimensionally the same as Neapco N3-2-1619



Denny's Driveshafts Flange Yoke Dimension Diagram
