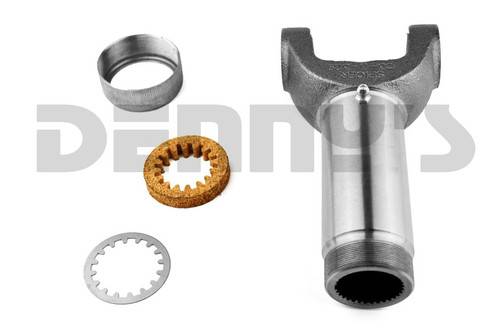

Dana Spicer 3-3-2591KX Slip Yoke 1350 series 16 spline 6.625 inches

Part Number:
3-3-2591KX

UPC:

023913229214

Your Cost $120.95

STATUS: IN STOCK - FREE SHIPPING

Dana Spicer 3-3-2591KX

1350 series Slip Yoke

Fits Jeep Front or Rear Spline and Slip Style Driveshaft

Use this slip yoke to upgrade to 1350 series and retain your existing driveshaft. It will fit in place of the original slip yoke on any 16 spline driveshaft with a spline diameter of 1.375 inches
16 splines
1.375 inch Spline Diameter
6.625 inches from center of u-joint bearing cap to end of yoke with seal removed.

Dana Spicer 3-3-2591KX Slip Yoke 1350 series 16 spline 6.625 inches

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $120.95

Dana Spicer 3-3-2591KX

1350 series Slip Yoke

Designed for 1350 series u-joint. See bottom of this page for 1350 series u-joints and pinion yokes

3 5/8 inches between snap rings
1 3/16 diameter bearing caps
Includes screw on Splined Seal Part Number D3G for use on full length splines
- OPTIONAL - Rubber Seal insert to replace splined seal for use on smooth neck spline. See bottom of page.

Use this slip yoke to upgrade to 1350 series and retain your existing driveshaft.

It will fit in place of the original slip yoke on any 16 spline driveshaft with a spline diameter of 1.375 inches

Fits 16 spline driveshaft with 1.375 spline Diameter
- For proper fit be sure to Measure OUTSIDE DIAMETER of SPLINED SHAFT
6.625 inches from center of u-joint bearing cap to end of yoke with seal removed.
- Measure from CENTER of Bearing Cap Hole to END of Yoke with seal removed

Dana Spicer 3-3-2591KX Slip Yoke 1350 series 16 spline 6.625 inches

You May Also Need These Parts to Complete the Job

DANA SPICER 3-3-2701KX Slip Yoke 1350 Series 15/16 spline 6.810 inches Part#: 3-3-2701KX $112.95	Neapco 2-0053G universal joint 1350 Series non greaseable 3.622 x 1.188 Part#: 2-0053G ~~$24.10~~ $22.95
Dana Spicer 5-178X Greaseable u-joint 1350 Series Part#: 5-178X $20.95	NEAPCO N3-3-2701KX Slip Yoke 1350 series 15/16 spline 6.810 inches Part#: N3-3-2701KX $101.47

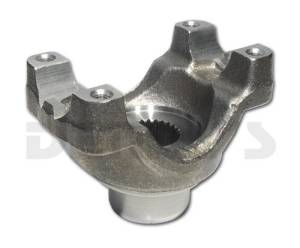

Dana Spicer 5-1350X Universal Joint NON Greaseable 1350 series cold forged solid body heat treated precision ground and case hardened with multi lip seals Part#: 5-1350X $23.54	DANA SPICER 3-4-5761-1X Pinion Yoke 1350 series fits JEEP DANA 44 with 26 spline pinion Part#: 3-4-5761-1X $129.95

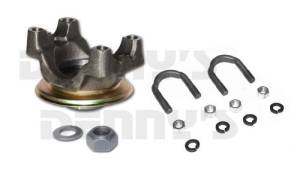

2425118 Optional Rubber seal for 3-3-2591KX slip yoke Part#: 2425118 ~~$4.20~~ $2.95	9972777 Pinion Yoke FORGED 1350 series 27 spline fits Jeep with Chrysler 8.25 inch rear end Part#: 9972777 $125.95
