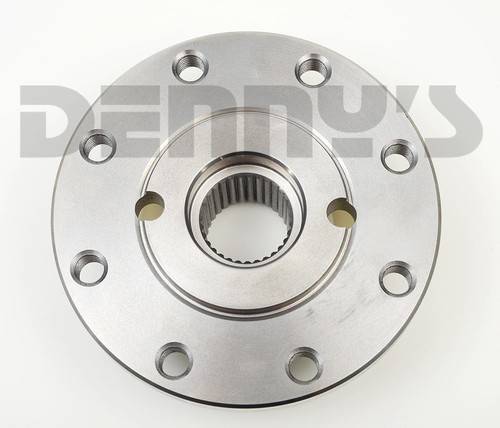

AAM 2C3Z4851AB Pinion Companion Flange 31 splines fits 1993 to 2007 Ford Super Duty with 10.25 and 10.5 inch rear end - replaces OEM 2C3Z4851AB

Part Number:
2C3Z4851AB

UPC:

Your Cost $175.47

Sorry, sold out

STATUS: See other choices in listing

AAM 2C3Z4851AB

Description
- Ford Pinion Companion Flange
Application
- 1993 to 1998 Ford 10.25 inch rear ends
- 1999 to 2007 Ford 10.5 inch rear ends
SUBSTITUTE REPLACEMENT
- Yukon YY F100606

AAM 2C3Z4851AB Pinion Companion Flange 31 splines fits 1993 to 2007 Ford Super Duty with 10.25 and 10.5 inch rear end - replaces OEM 2C3Z4851AB

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: See other choices in listing

YOUR COST: $175.47

AAM 2C3Z4851AB

Description
- Ford Rear End Pinion Companion Flange
Fits
- 1993 to 1998 Ford 10.25 inch rear ends
- 1999 to 2007 Ford 10.5 inch rear ends
Pilot Diameter
- 2.953 inch
Splines
- 31
Seal surface diameter
- 1.812 inch - fits OEM seal
Series
- 1350/1410/1480
Distance through splined hole
- 1.635 inch
Counterbore
- YES
- Diameter = 1.395 inch
- Depth = .090 inch
Bolt Circle
- 4.75 inch measured diagonally
Bolt holes
- 8 threaded holes available - Only 4 bolts are required for mounting the flange yoke
- 12 mm metric
  - See bottom of page for bolt set
Comments
- Can be used with a 1350, 1410 or 1480 flange yoke. See bottom of page for choices.
- Replaces OEM Ford 2C3Z4851AB
SUBSTITUTE REPLACEMENT
- Yukon YY F100606

AAM 2C3Z4851AB Pinion Companion Flange 31 splines fits 1993 to 2007 Ford Super Duty with 10.25 and 10.5 inch rear end - replaces OEM 2C3Z4851AB
Click Here to Enlarge	Click Here to Enlarge

You May Also Need These Parts to Complete the Job

DANA SPICER 3-2-1859 Flange Yoke 1350 Series 4.750 inch bolt circle with 2.953 female pilot diameter Part#: 3-2-1859 ~~$55.26~~ $49.95	Yukon YY F100606 Pinion Companion Flange 31 splines fits 1993 to 2007 Ford Super Duty with 10.25 and 10.5 inch rear end - replaces OEM 2C3Z4851AB Part#: YY F100606 $112.61
42-1855 BOLT Set M12-1.75 for FORD 7.5, 8.8, 9.75, 10.25, 10.5 inch Rear End Pinion Flange - 12mm 12 point bolt set Part#: 42-1855 $11.95	TIMKEN 4278 Rear End Pinion Seal fits Ford Excursion, Expedition, F250, F350 Super Duty, E Series VANS with 10.25 and 10.5 inch rear ends Part#: 4278 $14.42
DANA SPICER 3-2-1839 Flange Yoke 1410 series with 2.953 female pilot Part#: 3-2-1839 ~~$46.42~~ $41.95	DANA SPICER 3-2-1869 Flange Yoke 1480 series with 2.953 female pilot Part#: 3-2-1869 ~~$58.86~~ $55.95

Please enter your email address in order to be notified when this item is available.

Driveshaft and Driveline Parts > COMPANION FLANGES > SPLINED SHAFT > FORD 10.25 inch REAR End - 31 SPLINE
