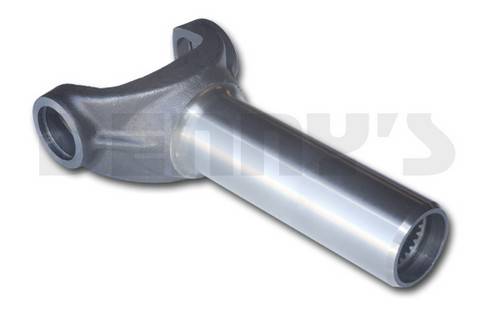

Dana Spicer 2-3-11781X slip yoke 6.76 inch 1330 series fits GM 700R, 4L60, 4L65 transmissions with 27 spline output
|
|
Your Cost
$76.95
STATUS:
IN STOCK
|
|
Dana Spicer 2-3-11781X
1330 Series long barrel length 27 spline 700R and 4L60 Transmission Slip yoke. Longer barrel length to match original equipment dimension.
NO Vent hole in plug.
UPC: 023913235604
Part Number: 2-3-11781X
|
Dana Spicer 2-3-11781X slip yoke 6.76 inch 1330 series fits GM 700R, 4L60, 4L65 transmissions with 27 spline output
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: IN STOCK
YOUR COST:
$76.95
|
Dana Spicer 2-3-11781X
1330 Series long barrel length 27 spline 700R and 4L60 Transmission Slip yoke. Longer barrel length to match original equipment dimension.
DIMENSIONS
- Length to center of u-joint... Dimension #1 = 6.76 inches
- Barrel Diameter... Dimension #2 = 1.502 inches
- Barrel Length... Dimension #3 = 4.625 inches
- U-joint cap diameter... Dimension #4 = 1.062 inches
- U-joint width... Dimension #5 = 3.625 inches
- Series... 1330
- Spline count... 27
- Counterbore Diameter = 1.217
- Counterbore Depth = 0.410
- Special Notes: NO VENT HOLE IN PLUG
- see 2-3-12051X for non vented version
|
Dana Spicer 2-3-11781X slip yoke 6.76 inch 1330 series fits GM 700R, 4L60, 4L65 transmissions with 27 spline output
|
|
