DANA SPICER 3-3-6541X Slip Yoke fits Dodge, Chevy, GMC 2500, 3500 4x4 with New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output 1410 Series 8.34 inches long

DANA SPICER 3-3-6541X Slip Yoke fits Dodge, Chevy, GMC 2500, 3500 4x4 with New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output 1410 Series 8.34 inches long - FREE SHIPPING

Part Number:
3-3-6541X

UPC:

023913232238

Your Cost ~~$162.72~~ Sale Price $145.28

You Save $17.44

STATUS: IN STOCK - FREE SHIPPING

DANA SPICER 3-3-6541X

SLIP YOKE 1410 series

Fits New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output
- Also fits some applications with 241DHD, 261HD, 263G, 263 XHD with 31 spline output.
- You must verify dimension of slip yoke barrel to be 2.200 before ordering this part
Fits Dodge RAM 2500/3500 4x4 Rear Driveshaft
Fits Chevy and GMC 2500/3500 4x4 Rear Driveshaft

DANA SPICER 3-3-6541X Slip Yoke fits Dodge, Chevy, GMC 2500, 3500 4x4 with New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output 1410 Series 8.34 inches long - FREE SHIPPING

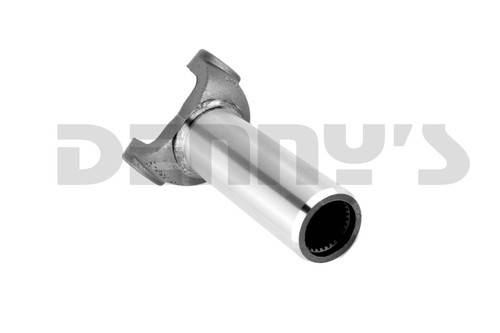

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: ~~$162.72~~ Sale Price $145.28

You Save $17.44

DANA SPICER 3-3-6541X

SLIP YOKE 1410 series

Fits New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output
- Also fits some applications with 241DHD, 261HD, 263G, 263 XHD with 31 spline output.
- You must verify dimension of slip yoke barrel to be 2.200 before ordering this part
Fits Dodge RAM 2500/3500 4x4 Rear Driveshaft
Fits Chevy and GMC 2500/3500 4x4 Rear Driveshaft

DIMENSIONS

1410 Series
Outside Snap Ring style
Length to center of u-joint... Dimension #1 = 8.34 inches
Barrel Diameter... Dimension #2 = 2.20 inches
Barrel Length... Dimension #3 = 6.312 inches
U-joint cap diameter... Dimension #4 = 1.188 inches
U-joint width... Dimension #5 = 4.188 inches
Series... 1410
Spline count... 30/31
Spline OD 1.615 inches
Counterbore Diameter = 1.655
Counterbore Depth = 0.270
Special Notes: Counterbore at hub end

CLICK HERE : For ALL DANA SPICER Slip Yoke Part Numbers, Specifications and Dimensions

DANA SPICER 3-3-6541X Slip Yoke fits Dodge, Chevy, GMC 2500, 3500 4x4 with New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output 1410 Series 8.34 inches long - FREE SHIPPING
