Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

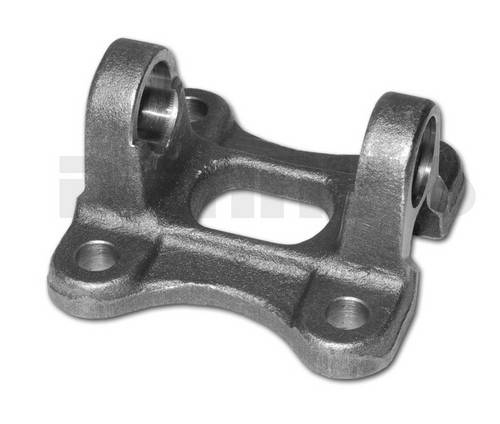

Neapco N2-2-1369 FLANGE YOKE 1330 series
Part Number:
N2-2-1369


UPC:
083869018706
Your Cost $50.78
STATUS:  IN STOCK

NEAPCO N2-2-1369

  • Replaces Dana Spicer 2-2-1369
  • Replaces Ford OEM E9TZ4782B



Neapco
Neapco N2-2-1369 FLANGE YOKE 1330 series
Neapco N2-2-1369 FLANGE YOKE 1330 series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $50.78

NEAPCO N2-2-1369

  • Replaces Dana Spicer 2-2-1369
  • Replaces Ford OEM E9TZ4782B
  • X = 3 inches
  • Y = 3 inches
  • C = Center Pilot Hole Diameter is 2.0 inches
  • 1330 series
    • 3.625 between snap rings (3 5/8 inches)
    • D = 1.062 bearing cap diameter (1 1/16 inches)
Flange Yokes - Flange Yokes Model/Part #:  N2-2-1369
A.) Flange or Swing Dia. 5.250
B) Bolt Circle Dia. 4.250
Bolt Hole Dia. (NOM) .500-D
Number of Bolt Holes 4
C) Pilot Dia. M=male F=female 2.000-F
G) Flange Face to C/L 1.625

Denny's Driveshafts Flange Yoke Dimension Diagram

Neapco N2-2-1369 FLANGE YOKE 1330 series

Neapco N2-2-1369 FLANGE YOKE 1330 series
