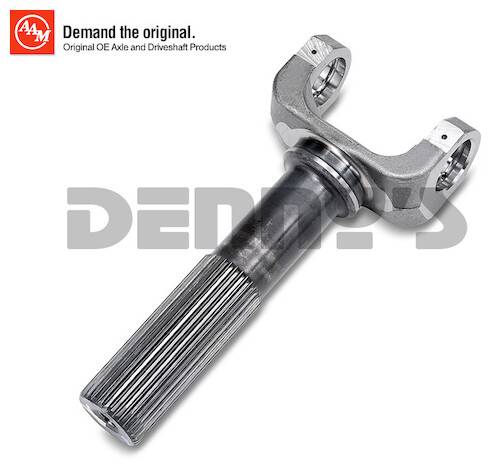

AAM 40006885 Front Driveshaft Yoke shaft 3R Series for NP 246, NP261, NP263 Transfer Case 1999 and newr GM 4x4
Part Number:
40006885


UPC:
Your Cost $58.88
STATUS:  SOLD OUT...More Coming Soon

AAM 40006885

  • Fits front output on 1999 and newer GM 4x4 trucks with NP246, NP261, NP263 transfer case
  • 3R series Yoke Shaft fits front driveshaft
  • 1.378 - 32 splines
  • Fits 3R Series universal joint with inside c-clips

AAM
AAM 40006885 Front Driveshaft Yoke shaft 3R Series for NP 246, NP261, NP263 Transfer Case 1999 and newr GM 4x4
AAM 40006885 Front Driveshaft Yoke shaft 3R Series for NP 246, NP261, NP263 Transfer Case 1999 and newr GM 4x4
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  SOLD OUT...More Coming Soon
YOUR COST:  $58.88

AAM 40006885

  • Fits front output on 1999 and newer GM 4x4 trucks with NP246, NP261, NP263 transfer case
  • 3R series Yoke Shaft fits front driveshaft
  • GM-K series 4X4s 1998 through 2007
  • Hummer H2 2003 through 2007
  • GM-G series Vans 2003 through 2006
  • 1.378 - 32 splines
  • Designed for 3R Series universal joint...see bottom of this page for u-joints
  • Requires rubber boot to seal transfer case output...see bottom of this page for rubber boot
  • Dimensions
    • 7 5/8 inches from center of u-joint to end of spline
    • 3 1/2 inches of spline
    • 1 3/8 inch spline diameter
    • 2.556 inches between flats where INSIDE "C" clip locks 3R Series universal joint in place
    • 1 1/8 inch bores to fit 3R series Universal joint bearing cap
AAM 40006885 Front Driveshaft Yoke shaft 3R Series for NP 246, NP261, NP263 Transfer Case 1999 and newr GM 4x4

AAM 40006885 Front Driveshaft Yoke shaft 3R Series for NP 246, NP261, NP263 Transfer Case 1999 and newr GM 4x4

You May Also Need These Parts to Complete the Job

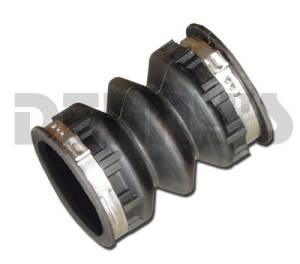

NEAPCO 211504 Rubber Boot for AUTOTRAC Transfer Case Front Splined Yoke Shaft
$27.83 $26.50
SPICER 5-3147X 3R Series U-joint Greaseable
$19.25
Dana Spicer 5-795X Universal Joint 3R Series Non greaseable
$27.95
