DANA SPICER 2-3-8041KX Driveshaft Slip Yoke 1330 series 16 spline 7.5 inches
Part Number:
2-3-8041KX


UPC:
023913229474
Your Cost $68.95
STATUS:  IN STOCK

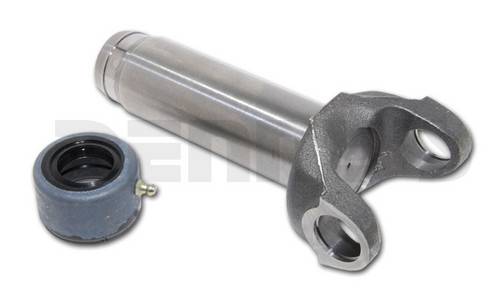

DANA SPICER 2-3-8041KX

1330 series Slip Yoke

Fits Front or Rear Spline and Slip Style Driveshaft

  • 16 splines and 1.375 inch Spline Diameter
  • 7.5 inches from center of u-joint bearing cap to end of yoke with seal removed.


Spicer
DANA SPICER 2-3-8041KX Driveshaft Slip Yoke 1330 series 16 spline 7.5 inches
DANA SPICER 2-3-8041KX 1330 Series 16 spline slip yoke
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $68.95

DANA SPICER 2-3-8041KX

1330 series Slip Yoke

Designed for 1330 series u-joint.  See bottom of this page for 1330 series u-joints

  • E = 3 5/8 inches between snap rings
  • D = 1 1/16 diameter bearing caps
  • J = 7.5 inches from center of u-joint bearing cap to end of yoke with seal removed.
    • Measure from CENTER of Bearing Cap Hole to END of Yoke with seal removed

  • Fits 16 spline driveshaft with 1.375 spline Diameter
    • For proper fit be sure to Measure OUTSIDE DIAMETER of SPLINED SHAFT
  • Includes press on seal ....Note: For ease of installation we will press on the Seal before shipping

image/jpeg

image/jpeg



DANA SPICER 2-3-8041KX Driveshaft Slip Yoke 1330 series 16 spline 7.5 inches

DANA SPICER 2-3-8041KX 1330 Series 16 spline slip yoke
