SONNAX T3-2-119A Aluminum Flange Yoke 1350 series 2.75 inch male pilot 3.75 bolt circle

Part Number:
T3-2-119A

UPC:

Your Cost $102.61

Sorry, sold out

CLICK HERE to be NOTIFIED when this item is available

STATUS: SOLD OUT...More Coming Soon

Sonnax T3-2-119A

Aluminum Flange Yoke

1350 series
- Fits 1350 series universal joints listed at bottom of this page
- Fits 3.625 x 1.188 u-joint size
Outside Snap Ring style
2.75 inch male pilot
3.75 inch bolt circle
1.562 inch CL to mounting face

Material: 6061-T6 Aluminum
Bolt Hole Dia.: 0.440"
Weight (lbs): 1.020
Bolt Count: 4

NOTE:

Dimensionally the same as Dana Spicer 3-2-119 steel flange yoke

SONNAX T3-2-119A Aluminum Flange Yoke 1350 series 2.75 inch male pilot 3.75 bolt circle

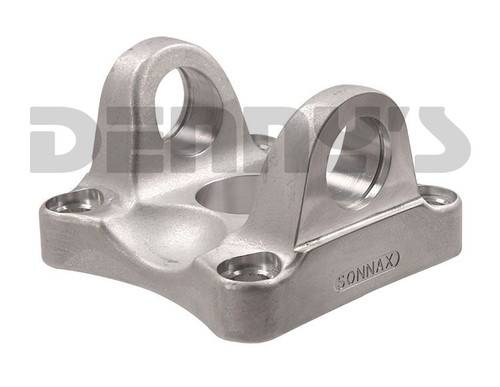

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: SOLD OUT...More Coming Soon

YOUR COST: $102.61

>>>>> FINAL SALE: This ALUMINUM part number is a Final Sale ITEM. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<

Sonnax T3-2-119A

Aluminum Flange Yoke

1350 series
- Fits 1350 series universal joints listed at bottom of this page
- Fits 3.625 x 1.188 u-joint size
Outside Snap Ring style
2.75 inch male pilot
3.75 inch bolt circle
1.562 inch CL to mounting face

Material: 6061-T6 Aluminum
Bolt Hole Dia.: 0.440"
Weight (lbs): 1.020
Bolt Count: 4

NOTE:

Dimensionally the same as Dana Spicer 3-2-119 steel flange yoke

SONNAX T3-2-119A Aluminum Flange Yoke 1350 series 2.75 inch male pilot 3.75 bolt circle

You May Also Need These Parts to Complete the Job

Neapco 2-0053G universal joint 1350 Series non greaseable 3.622 x 1.188 Part#: 2-0053G ~~$24.10~~ $22.95	Dana Spicer 5-1350-1X GREASEABLE Universal Joint 1350 Series fitting in end of bearing cap Part#: 5-1350-1X $32.60
Dana Spicer 5-1350X Universal Joint NON Greaseable 1350 series cold forged solid body heat treated precision ground and case hardened with multi lip seals Part#: 5-1350X $23.54	DANA SPICER 5-3615X Universal Joint 1350 Series COATED for ALUMINUM DRIVESHAFTS Part#: 5-3615X $37.25
