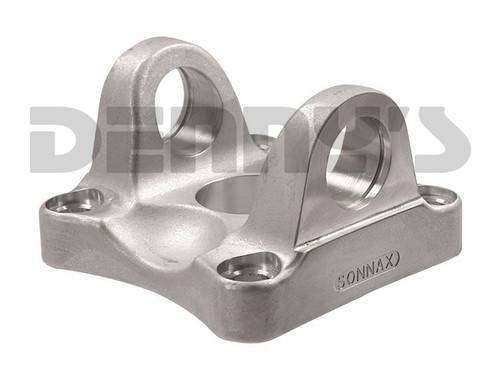

SONNAX T2-2-939A Aluminum Flange Yoke 1310 series 2.0 inch female pilot 3.5 bolt circle

Part Number:
T2-2-939A

UPC:

Your Cost $112.71

STATUS: IN STOCK - FINAL SALE

Sonnax T2-2-939A

Aluminum Flange Yoke

1310 series
- Fits 1310 series universal joints listed at bottom of this page
- Fits 3.219 x 1.062 u-joint size
Outside Snap Ring style
2 inch female pilot
3.5 inch bolt circle
1.65 inch CL to mounting face

Material: 6061-T6 Aluminum
Bolt Hole Dia.: 0.516"
Weight (lbs): 0.830
Bolt Count: 4

NOTE:

Dimensionally the same as Dana Spicer 2-2-939 and Neapco N2-2-939 steel flange yoke

SONNAX T2-2-939A Aluminum Flange Yoke 1310 series 2.0 inch female pilot 3.5 bolt circle

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FINAL SALE

YOUR COST: $112.71

>>>>> FINAL SALE: This ALUMINUM part number is a Final Sale ITEM. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<

Sonnax T2-2-939A

Aluminum Flange Yoke

1310 series
- Fits 1310 series universal joints listed at bottom of this page
- Fits 3.219 x 1.062 u-joint size
Outside Snap Ring style
2 inch female pilot
3.5 inch bolt circle
1.65 inch CL to mounting face

Material: 6061-T6 Aluminum
Bolt Hole Dia.: 0.516"
Weight (lbs): 0.830
Bolt Count: 4

NOTE:

Dimensionally the same as Dana Spicer 2-2-939 and Neapco N2-2-939 steel flange yoke

SONNAX T2-2-939A Aluminum Flange Yoke 1310 series 2.0 inch female pilot 3.5 bolt circle
