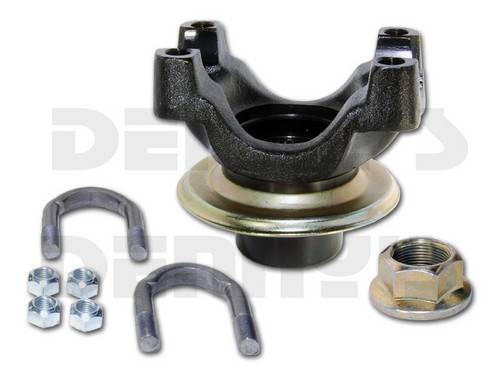

9870041 Pinion Yoke 1350 Series Forged U-Bolt style fits 1993 to 2010 FORD F250, F350 Super Duty 10.25 inch and 10.50 inch Sterling rear ends

Part Number:
9870041

UPC:

Your Cost $155.54

STATUS: IN STOCK - FREE SHIPPING

9870041

Pinion Yoke for FORD Super Duty Rear End
- Fits Ford F250, F350 Super Duty Truck with 10.25 inch FORD Sterling Rear
  - 1993, 1994, 1995, 1996, 1997, 1998
- Fits Ford F250, F350 Super Duty Truck 10.50 inch FORD Sterling Rear
  - 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010

31 Splines 1.343 diameter
U- Bolt style
FORGED Steel for extra strength
Comes with pinion nut and u-bolt set
1350 Series - fits 1350 series universal joint 5-178X or 5-1350X
- E = Fits Universal joint 3.625 inches (3 5/8) wide cap to cap
- D = Fits u-joint bearing cap diameter 1.188 inch (1 3/16)
- Q = 1.640 inches through splined hole
- S = 3.5 inches tall
- R = 1.812 inches seal surface diameter

THIS Yoke is 3.5 inches (3 1/2) TALL

IMPORTANT: Early 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992 Ford 10.25 inch Sterling rear end pinion yokes could be 3.125 inches (3 1/8) tall. Please check yours to be sure before ordering.

CLICK HERE if you need the 3-1/8 inch tall yoke part number 9877740 for 10.25 inch from 1983 to 1992

NOTES:

DOES NOT fit Ford Super duty with DANA rear end
NOT compatible with 1330 series driveshaft.
- Requires 1330 to 1350 combination u-joint to make connection. CLICK HERE
NOT compatible with 1410 series driveshaft
- CLICK HERE for 1410 series Ford Sterling pinion yokes

9870041 Pinion Yoke 1350 Series Forged U-Bolt style fits 1993 to 2010 FORD F250, F350 Super Duty 10.25 inch and 10.50 inch Sterling rear ends

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $155.54

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

9870041

Pinion Yoke for FORD Super Duty Rear End
- Fits Ford F250, F350 Super Duty Truck with 10.25 inch FORD Sterling Rear
  - 1993, 1994, 1995, 1996, 1997, 1998
- Fits Ford F250, F350 Super Duty Truck 10.50 inch FORD Sterling Rear
  - 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010

31 Splines 1.343 diameter
U- Bolt style
FORGED Steel for extra strength
Comes with pinion nut and u-bolt set
1350 Series - fits 1350 series universal joint 5-178X or 5-1350X
- E = Fits Universal joint 3.625 inches (3 5/8) wide cap to cap
- D = Fits u-joint bearing cap diameter 1.188 inch (1 3/16)
- Q = 1.640 inches through splined hole
- S = 3.5 inches tall
- R = 1.812 inches seal surface diameter

THIS Yoke is 3.5 inches (3 1/2) TALL

CLICK HERE if you need the 3-1/8 inch tall yoke part number 9877740 for 10.25 inch from 1983 to 1992

NOTES:

DOES NOT fit Ford Super duty with DANA rear end
NOT compatible with 1330 series driveshaft.
- Requires 1330 to 1350 combination u-joint to make connection. CLICK HERE
NOT compatible with 1410 series driveshaft
- CLICK HERE for 1410 series Ford Sterling pinion yokes

9870041 Pinion Yoke 1350 Series Forged U-Bolt style fits 1993 to 2010 FORD F250, F350 Super Duty 10.25 inch and 10.50 inch Sterling rear ends
