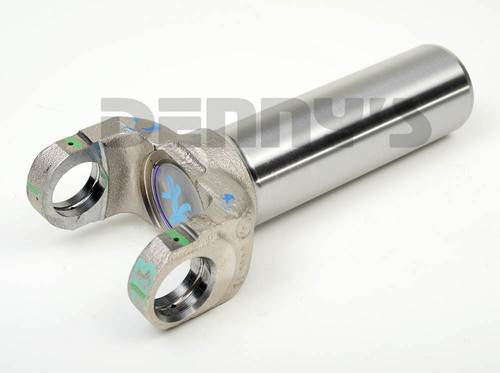

AAM 40032054 GM 3R Series Transfer Case Slip Yoke Nickel Plated 7.875 inch fits 1980 and newer CHEVY and GMC 4x4 NP 205, 208, 241, 243, 246, 261, 263 with 32 spline output

Part Number:
40032054

UPC:

Your Cost $81.76

STATUS: IN STOCK

AAM 40032054

Description
- Slip Yoke 3R Series
- 31 based on 32 spline
- Nickel plated
Application
- Full size trucks
Fits Years
- 99+
Fits Side
- Trans Yoke
Length overall
- 200 mm = 7.875 inches
Splines
- 32
Barrel Diameter
- Barrel = 47.9 mm = 1.886 inches
Barrel Length to radius
- 5.50 inches
Series
- 1344/3R
OEM Numbers and Replacement Numbers
- N3R-3-1642X, 40012495, N3R-3-9161X, GM 12479383, 88963576, 7838665, 40009290, 40026154
Comments
- NICKEL PLATED

AAM 40032054 GM 3R Series Transfer Case Slip Yoke Nickel Plated 7.875 inch fits 1980 and newer CHEVY and GMC 4x4 NP 205, 208, 241, 243, 246, 261, 263 with 32 spline output

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $81.76

AAM 40032054

Description
- Slip Yoke 3R Series
- 31 based on 32 spline
- Nickel plated
Application
- Full size trucks
Fits Years
- 99+
Fits Side
- Trans Yoke
Length overall
- 200 mm = 7.875 inches
Splines
- 32
Barrel Diameter
- Barrel = 47.9 mm = 1.886 inches
Barrel Length to radius
- 5.50 inches
Series
- 1344/3R
OEM Numbers and Replacement Numbers
- N3R-3-1642X, 40012495, N3R-3-9161X, GM 12479383, 88963576, 7838665, 40009290, 40026154
Comments
- NICKEL PLATED

AAM 40032054 GM 3R Series Transfer Case Slip Yoke Nickel Plated 7.875 inch fits 1980 and newer CHEVY and GMC 4x4 NP 205, 208, 241, 243, 246, 261, 263 with 32 spline output
