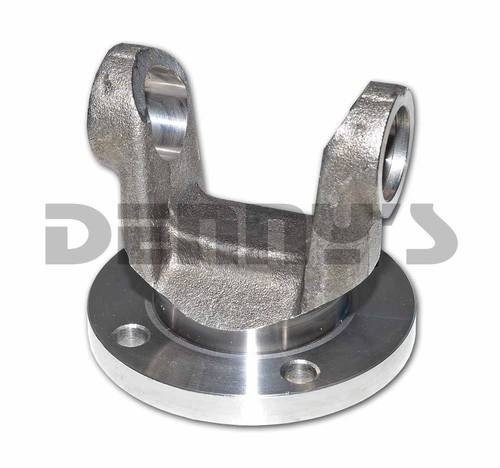

5259801 Flange Yoke Replacement for old Dodge Detroit Pot Body Style Ball and Trunion Driveshafts 1310 series 4 inch pilot diameter

Part Number:
5259801

UPC:

Your Cost $82.95

Sorry, sold out

STATUS: SOLD OUT...More Coming Soon

5259801

Flange Yoke

Flange Yoke mounts to transmission in place of the old Dodge Detroit Pot Body Style Ball and Trunion Driveshaft.
Use this Flange Yoke on a custom built spline and slip driveshaft to upgrade from the old style original.

Dimensions

4.0 inches - Outside diameter - pilot dimension
1310 Series
- 3.219 inches u-joint cap to cap
- 1.062 inches u-joint cap diameter
Outside snap ring style
3.250 inches - Bolt circle diameter
.385 inches - Bolt hole Diameter
2.750 inches - Center of U-JOINT to Face of mounting flange
Rectangular Bolt pattern
- 2-1/16 inches by 2-1/2 inches
