2254131 Stub Spline replaces Dana Spicer 2-54-131 fits 2 inch x .095 wall tube for 1958-1964 Chevrolet Car 60-72 C-10 Truck fits 1.181 bearing ID

Part Number:
2254131

UPC:

Your Cost $69.95

STATUS: IN STOCK

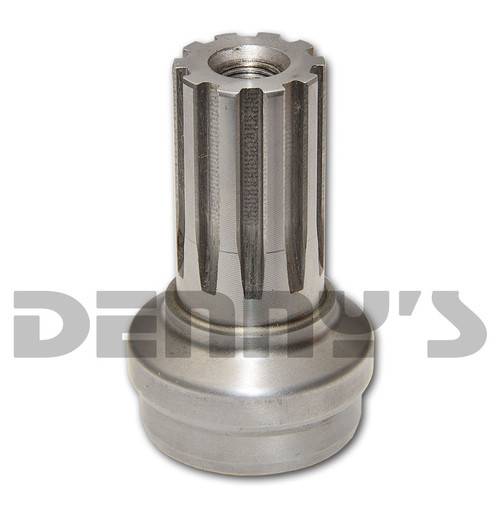

2254131

Stub Spline

Replaces obsolete DANA SPICER 2-54-131
Fits stock 2 piece driveshaft
- Chevrolet Car
  - 1958, 1959, 1960, 1961, 1962, 1963, 1964
- Chevrolet C-10 Truck
  - 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
Spline count = 9/10....9 splines and 1 wide space.
- The wide space is there to align this stub spline to the yoke in the correct position.

Spline Diameter = 1.172
- End of spline to weld = 2.720 inches
Fits stock 2 inch x .095 wall tubing
Fits 1.181 inch ID stock center support bearing 210527X ... see bottom of this page
Fits stock bolt size .... see bottom of this page
Fits stock center yoke 2-4-1921 ....see bottom of this page

2254131 Stub Spline replaces Dana Spicer 2-54-131 fits 2 inch x .095 wall tubing for 1958-1964 Chevrolet Car 60-72 C-10 Truck fits 1.181 bearing ID

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $69.95

2254131

Stub Spline

Replaces obsolete DANA SPICER 2-54-131
Fits stock 2 piece driveshaft with center support bearing
- Chevrolet Car
  - 1958, 1959, 1960, 1961, 1962, 1963, 1964
- Chevrolet C-10 Truck
  - 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
Spline count = 9/10....9 splines and 1 wide space.
- The wide space is there to align this stub spline to the yoke in the correct position.

Spline Diameter = 1.172
- End of spline to weld = 2.720 inches
Fits 2 inch x .095 wall tubing
Fits 1.181 inch ID stock center support bearing 210527X ... see bottom of this page
Fits stock bolt size .... see bottom of this page
Fits stock center yoke 2-4-1921 ....see bottom of this page

2254131 Stub Spline replaces Dana Spicer 2-54-131 fits 2 inch x .095 wall tubing for 1958-1964 Chevrolet Car 60-72 C-10 Truck fits 1.181 bearing ID

You May Also Need These Parts to Complete the Job

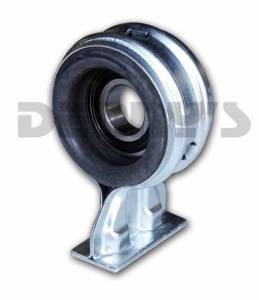

Dana Spicer 210527X Center BEARING 1.181 ID fits 1958 to 1964 Chevrolet Car and 1960 to 1972 C-10 Truck 2 piece driveshaft all with Round Bracket Part#: 210527X $27.95	NEAPCO N210527X Center BEARING 1.181 ID fits 1958 to 1964 Chevrolet Car and 1960 to 1972 C-10 Truck 2 piece driveshaft all with Round Bracket Part#: N210527X ~~$24.90~~ $23.71
2-4-1921 yoke 1958-1964 Chevrolet Car 60-72 C-10 Truck 1310 Series bolt on center driveshaft yoke Part#: 2-4-1921 $76.95	1958 to 1964 Chevrolet 55-72 Truck Bolt, Lock Washer and Flat Washer for OE Driveshaft Part#: 1474822 $5.78
Dana Spicer 5-153X Greaseable U-Joint for 58-64 Chevrolet Cars and 55-72 C10 trucks Part#: 5-153X $13.10
