Neapco N3-83-3281XKT 1350/1355 Double Cardan CV Head Assembly KIT fits Dodge RAM with 4.25 inch bolt circle and 3.125 inch pilot on front transfer case flange

Part Number:
N3-83-3281XKT

UPC:

Your Cost $238.95

STATUS: IN STOCK - FREE SHIPPING

Neapco N3-83-3281XKT

Double Cardan CV KIT

Fits OEM and aftermarket 1350/1355 series FRONT driveshafts that are built with a 1350/1355 NON greaseable stud yoke.
- DOES NOT FIT any greaseable style 1350/1355 series stud yokes
Fits Dodge RAM transfer case front output flange with 3.125 inch pilot diameter
1350/1355 Series NON Greaseable Center yoke
- Needle Bearing Ball Socket fits 1/2 inch stud yoke
1350/1355 Series Neapco 2-0053G NON gresaeable universal joints

INCLUDES

(1) N3-83-3281X ...Neapco 1350/1355 NON Greaseable CV centering yoke
(1) N3-26-757 ...Neapco 1350/1355 H-Yoke
(2) 2-0053G ...Neapco 1350/1355 Greaseable universal Joints
(1) 2-86-418 ...Dana Spicer Rubber Boot

DIMENSIONS

Bolt Circle.... 4.25 inches measured diagonally
Pilot Diameter... 3.125 inches
Fits universal joint 3.625 inches cap to cap (3 5/8 inches)
Fits u-joint bearing cap diameter 1.188 inches (1 3/16 inches)

Neapco N3-83-3281XKT 1350/1355 Double Cardan CV Head Assembly KIT fits Dodge RAM with 4.25 inch bolt circle and 3.125 inch pilot on front transfer case flange

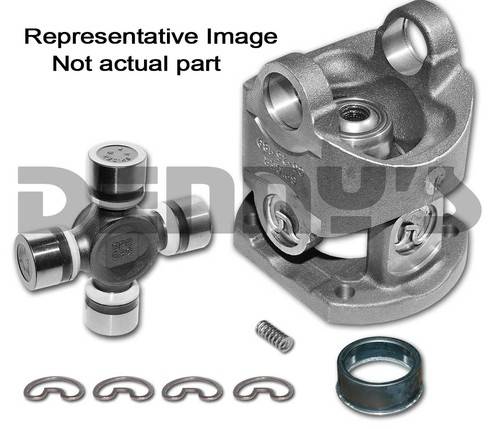

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $238.95

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

Neapco N3-83-3281XKT

Double Cardan CV KIT

Fits OEM and aftermarket 1350/1355 series FRONT driveshafts that are built with a 1350/1355 NON greaseable stud yoke.
- DOES NOT FIT any greaseable style 1350/1355 series stud yokes
Fits Dodge RAM transfer case front output flange with 3.125 inch pilot diameter
1350/1355 Series NON Greaseable Center yoke
- Needle Bearing Ball Socket fits 1/2 inch stud yoke
1350/1355 Series Neapco 2-0053G NON gresaeable universal joints

INCLUDES

(1) N3-83-3281X ...Neapco 1350/1355 NON Greaseable CV centering yoke
(1) N3-26-757 ...Neapco 1350/1355 H-Yoke
(2) 2-0053G ...Neapco 1350/1355 Greaseable universal Joints
(1) 2-86-418 ...Dana Spicer Rubber Boot

DIMENSIONS

Bolt Circle.... 4.25 inches measured diagonally
Pilot Diameter... 3.125 inches
Fits universal joint 3.625 inches cap to cap (3 5/8 inches)
Fits u-joint bearing cap diameter 1.188 inches (1 3/16 inches)

Neapco N3-83-3281XKT 1350/1355 Double Cardan CV Head Assembly KIT fits Dodge RAM with 4.25 inch bolt circle and 3.125 inch pilot on front transfer case flange
