DANA 60 FRONT - DODGE W200, W250, W300, W350 > SPINDLE BEARINGS AND SEALS

Dana Spicer 10086723 SPINDLE fits 1975 to 1993 DODGE W200, W300 with DANA 60 front axle replaces old part number 700013 - see number 61

Part Number:
10086723

UPC:

023913640279

Diagram Number:
61

Your Cost $95.95

STATUS: IN STOCK

DANA SPICER 10086723 replaces old number 700013

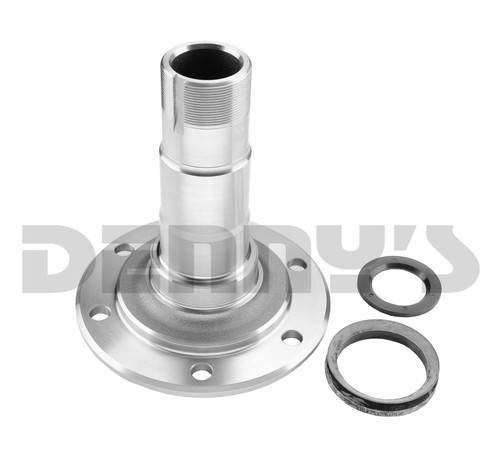

SPINDLE with bearing and seal kit
- Comes with 700014 splindle bearing and seal kit
- Comes with inner spindle bearing installed at the proper depth.
Fits DODGE W200, W300 with DANA 60 front axle
- 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993

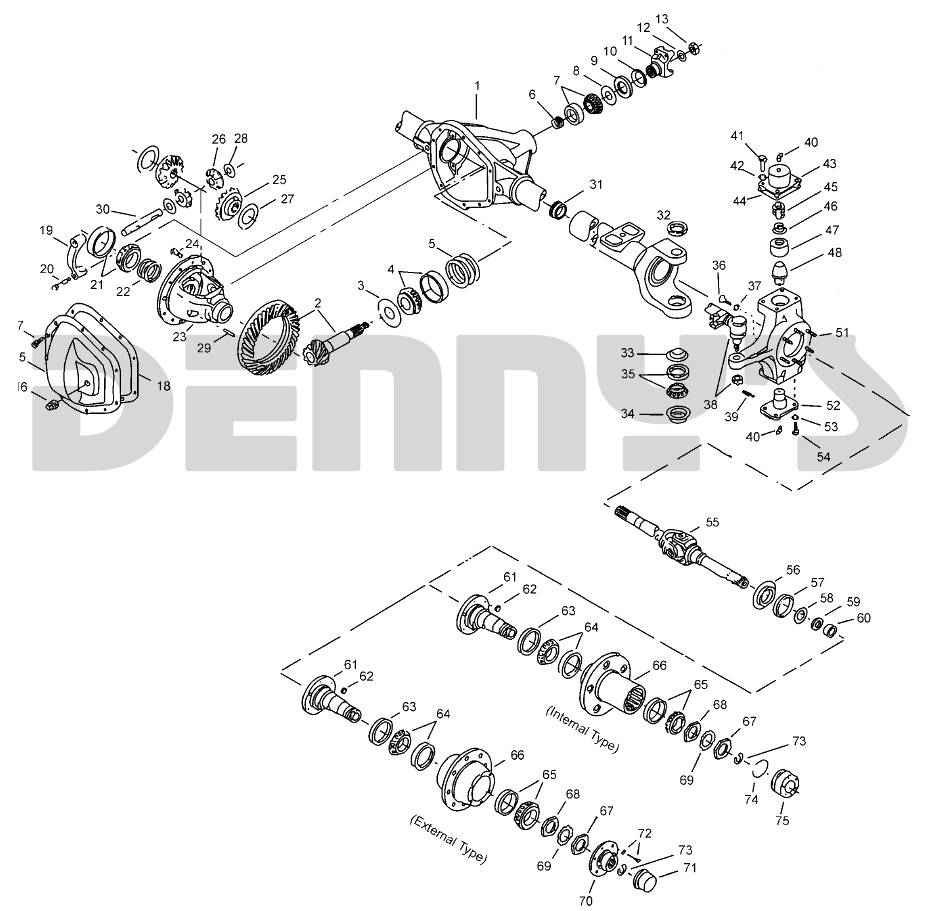

See number 61 on exploded view drawing

Spicer

Dana Spicer 10086723 SPINDLE fits 1975 to 1993 DODGE W200, W300 with DANA 60 front axle replaces old part number 700013 - see number 61

Dana Spicer 10086723 SPINDLE fits 1975 to 1993 DODGE W200, W300 with DANA 60 front axle replaces old part number 700013 - see number 61

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $95.95

DANA SPICER 10086723 replaces old number 700013

SPINDLE with bearing and seal kit
- Comes with 700014 splindle bearing and seal kit
- Comes with inner spindle bearing installed at the proper depth.
Fits DODGE W200, W300 with DANA 60 front axle
- 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993

See number 61 on exploded view drawing

DIMENSIONS

A = 2 in. OD for Outer Wheel Bearing
B = 2-1/4 in. OD for Inner Wheel Bearing
C = 2-3/4 in. OD for Seal
D = 4-1/2 in.
E = 5/16 in.
F = 5/16 in.
G = 6-7/8 in.
H = 7-1/2 in.
K = 6-3/4 in.
Bolt Holes = 6
Bolt Hole Diameter = .520 in.
Keyway = .280 in

How to Measure a 4X4 Front Axle Spindle at Denny's Driveshafts

Dana Spicer 10086723 SPINDLE fits 1975 to 1993 DODGE W200, W300 with DANA 60 front axle replaces old part number 700013 - see number 61

Dana Spicer 10086723 SPINDLE fits 1975 to 1993 DODGE W200, W300 with DANA 60 front axle replaces old part number 700013 - see number 61
