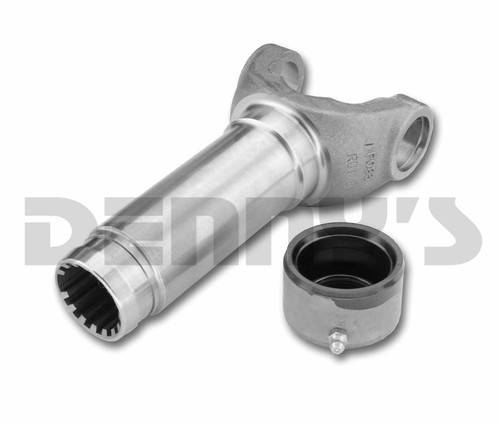

Dana Spicer 3-3-2801KX Slip Yoke 1350 Series 7.312 inches 1.5 inch spline 15 based on 16 designed for keyed spline

Part Number:
3-3-2801KX

UPC:

023913229313

Your Cost ~~$139.23~~ Sale Price $125.61

You Save $13.62

Sorry, sold out

STATUS: SOLD OUT...More Coming Soon

DANA SPICER 3-3-2801KX

1350 Series Slip Yoke

1.5 inch spline diameter - 15 based on 16 splines
- Designed for use with 1.5 inch 15 based on 16 keyed male splines
- Can also be used on a 1.5 inch 16 spline driveshaft without key
Has press on style dust cap with grease fitting
- Can slo be used with rubber boot 212010X

Dana Spicer 3-3-2801KX Slip Yoke 1350 Series 7.312 inches 1.5 inch spline 15 based on 16 designed for keyed spline

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: SOLD OUT...More Coming Soon

YOUR COST: ~~$139.23~~ Sale Price $125.61

You Save $13.62

DANA SPICER 3-3-2801KX

1350 Series Slip Yoke

1.5 inch spline diameter - 15 based on 16 splines
- Designed for use with 1.5 inch 15 based on 16 keyed male splines
- Can also be used on a 1.5 inch 16 spline driveshaft without key
Has press on style dust cap with grease fitting
- Can slo be used with rubber boot 212010X

DIMENSIONS

Spline/Hole Outside Diameter = 1.500
Number of Splines = 15 based on 16 (for use with keyed spline)
Series = 1350
Lock up style = OUTSIDE Snap Ring
1350 Universal Joint Width = 3.625
D - 1350 Universal Joint Bore = 1.188
Dust Cap Part Number = 211158X
- Dust Cap Style = 1 PIECE PRESS ON
- Can also be used with rubber boot 212010X
F - Center of u-joint bore to plug = 1.188
J - Center of u-joint bore to End of Slip yoke = 7.312

CLICK HERE : For ALL DANA SPICER Slip Yoke Part Numbers, Specifications and Dimensions
