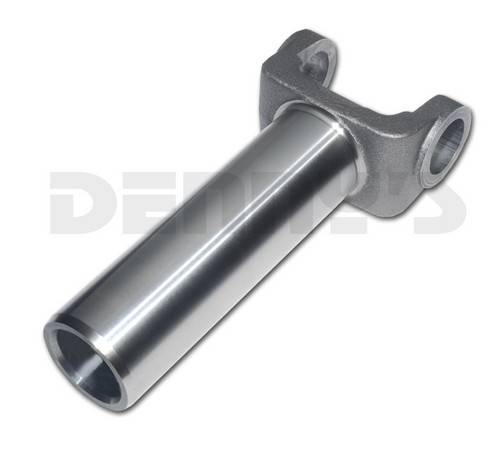

NEAPCO N2-3-9131X Transmission Slip Yoke 1310 Series 32 spline TH400 Long Barrel

Part Number:
N2-3-9131X

UPC:

083869005843

Your Cost $100.95

STATUS: IN STOCK - FREE SHIPPING

NEAPCO N2-3-9131X

GM Original Equipment Replacement 1310 Series 32 spline Transmission Slip Yoke for TH400.

Used on Chevy and GM TH400 automatics with long tailshaft housing

32 spline

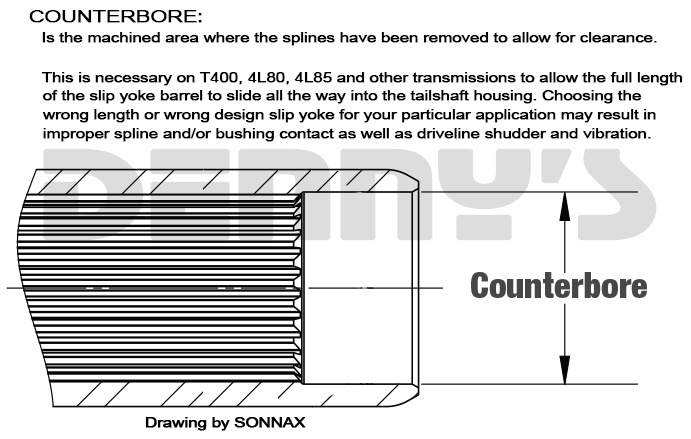

COUNTERBORE (splines removed) in end of barrel 2 inches deep

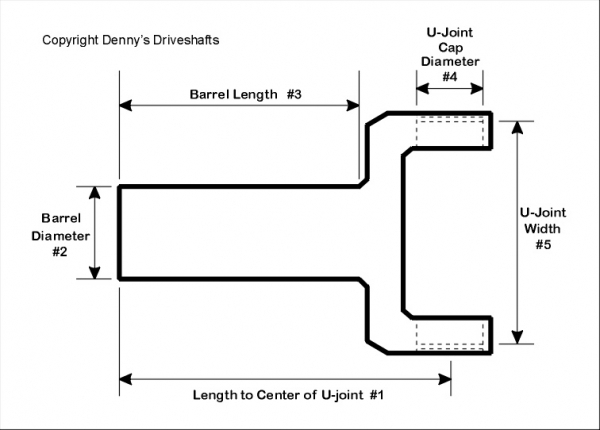

Length to center of u-joint... Dimension #1 = 7.5 inches
Barrel Diameter... Dimension #2 = 1.885
Barrel Length... Dimension #3 = 6 inches
U-joint cap diameter... Dimension #4 = 1.062 inches
U-Joint width ...Dimension #5 = 3.219 inches
Series... 1310
Outside Snap Ring Style
Spline count... 32 NOTE: When counting splines inside a slip yoke you may find a wide space with a missing spline...if so then you must add (1) to your total count.

NEAPCO N2-3-9131X Transmission Slip Yoke 1310 Series 32 spline TH400 Long Barrel

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $100.95

NEAPCO N2-3-9131X

GM Original Equipment Replacement 1310 Series 32 spline Transmission Slip Yoke for TH400.

Used on Chevy and GM TH400 automatics with long tailshaft housing

32 spline

COUNTERBORE (splines removed) in end of barrel 2 inches deep
Length to center of u-joint... Dimension #1 = 7.5 inches
Barrel Diameter... Dimension #2 = 1.885
Barrel Length... Dimension #3 = 6 inches
U-joint cap diameter... Dimension #4 = 1.062 inches
U-Joint width ...Dimension #5 = 3.219 inches
Series... 1310
Outside Snap Ring Style
Spline count... 32 NOTE: When counting splines inside a slip yoke you may find a wide space with a missing spline...if so then you must add (1) to your total count.

image/jpeg

NEAPCO N2-3-9131X Transmission Slip Yoke 1310 Series 32 spline TH400 Long Barrel
