Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

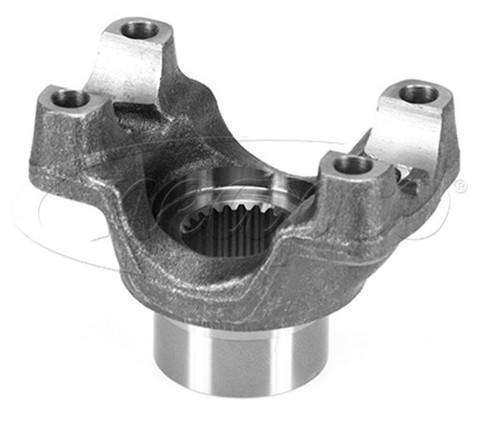

NEAPCO N3-4-JK08 Pinion Yoke 24 Spline 1350 series fits 2007 to 2018 JEEP Wrangler JK DANA 30 and DANA 44 FRONT END
Part Number:
N3-4-JK08


UPC:
083869379272
Your Cost $62.95
STATUS:  IN STOCK

NEAPCO N3-4-JK08

  • 1350 Series Pinion Yoke
  • U-BOLT STYLE
  • Fits JEEP Wrangler JK Dana 30 and Dana 44 FRONT END
    • 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
    • Replaces OEM Companion Flange for CV Joint on FRONT END

DIMENSIONS

  • SPLINE OD = 1.250
  • SPLINES = 24
    • D = 1.187
    • E = 3.625
    • Q = 1.500
    • R = 1.845
    • S = 3.10

U-JOINT ANGLE

  • 22 DEGREES
Neapco
NEAPCO N3-4-JK08 Pinion Yoke 24 Spline 1350 series fits 2007 to 2018 JEEP Wrangler JK DANA 30 and DANA 44 FRONT END
NEAPCO N3-4-JK08 Pinion Yoke 24 Spline 1350 series fits 2007 to 2018 JEEP Wrangler JK DANA 30 and DANA 44 FRONT END
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $62.95

NEAPCO N3-4-JK08

  • 1350 Series Pinion Yoke
  • U-BOLT STYLE
  • Fits JEEP Wrangler JK Dana 30 and Dana 44 FRONT END
    • 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
    • Replaces OEM Companion Flange for CV Joint on FRONT END

DIMENSIONS

  • SPLINE OD = 1.250
  • SPLINES = 24
    • D = 1.187
    • E = 3.625
    • Q = 1.500
    • R = 1.845
    • S = 3.10

U-JOINT ANGLE

  • 22 DEGREES
