Driveshaft and Driveline Parts > PINION YOKES - Front and Rear End > Dana > Dana 30 > 24 Spline Pinion JEEP JK FRONT Dana 30 and Dana 44

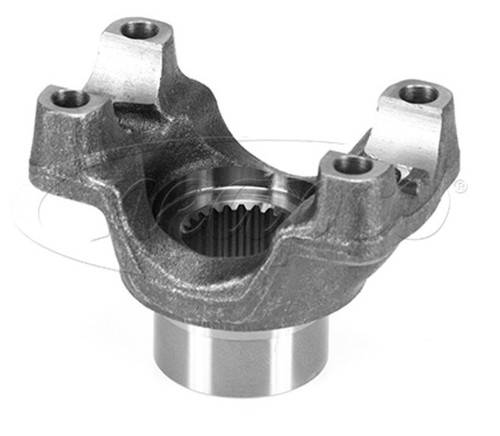

NEAPCO N3-4-JK08 Pinion Yoke 24 Spline 1350 series fits 2007 to 2018 JEEP Wrangler JK DANA 30 and DANA 44 FRONT END

Part Number:
N3-4-JK08

UPC:

083869379272

Your Cost $62.95

STATUS: IN STOCK

NEAPCO N3-4-JK08

1350 Series Pinion Yoke
U-BOLT STYLE
Fits JEEP Wrangler JK Dana 30 and Dana 44 FRONT END
- 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
- Replaces OEM Companion Flange for CV Joint on FRONT END

DIMENSIONS

SPLINE OD = 1.250
SPLINES = 24

D = 1.187

E = 3.625

Q = 1.500

R = 1.845

S = 3.10

U-JOINT ANGLE

22 DEGREES

Neapco

NEAPCO N3-4-JK08 Pinion Yoke 24 Spline 1350 series fits 2007 to 2018 JEEP Wrangler JK DANA 30 and DANA 44 FRONT END

NEAPCO N3-4-JK08 Pinion Yoke 24 Spline 1350 series fits 2007 to 2018 JEEP Wrangler JK DANA 30 and DANA 44 FRONT END

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $62.95

NEAPCO N3-4-JK08

1350 Series Pinion Yoke
U-BOLT STYLE
Fits JEEP Wrangler JK Dana 30 and Dana 44 FRONT END
- 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
- Replaces OEM Companion Flange for CV Joint on FRONT END

DIMENSIONS

SPLINE OD = 1.250
SPLINES = 24

D = 1.187

E = 3.625

Q = 1.500

R = 1.845

S = 3.10

U-JOINT ANGLE

22 DEGREES

image/jpeg

NEAPCO N3-4-JK08 Pinion Yoke 24 Spline 1350 series fits 2007 to 2018 JEEP Wrangler JK DANA 30 and DANA 44 FRONT END

NEAPCO N3-4-JK08 Pinion Yoke 24 Spline 1350 series fits 2007 to 2018 JEEP Wrangler JK DANA 30 and DANA 44 FRONT END

You May Also Need These Parts to Complete the Job

Neapco 2-0053G universal joint 1350 Series non greaseable 3.622 x 1.188 Part#: 2-0053G ~~$24.10~~ $22.95	Dana Spicer 5-178X Greaseable u-joint 1350 Series Part#: 5-178X $20.95
Dana Spicer 5-1350X Universal Joint NON Greaseable 1350 series cold forged solid body heat treated precision ground and case hardened with multi lip seals Part#: 5-1350X $23.54	Dana Spicer 3-94-18X U-Bolt Set fits 1.187 bearing cap diameter 1.666 CL on 1350/1410 Series u-bolt style transmission, transfer case and differential pinion yokes Part#: 3-94-18X $5.36
