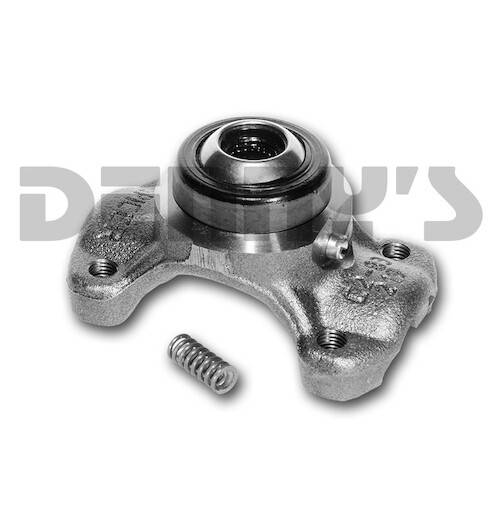

Dana Spicer 211355X GREASEABLE CV Centering Yoke for 1997 to 2006 Jeep Wrangler TJ with OEM or aftermarket 1310 series CV Driveshaft front/rear

Part Number:
211355X

UPC:

023913228972

Your Cost $56.95

STATUS: IN STOCK

Dana Spicer 211355X

Jeep CV Driveshaft Centering Yoke 1310 Series

Use on 1997 to 2006 Jeep Wrangler TJ front/rear 1310 series CV Driveshaft to repair or rebuild Double Cardan Joint

Fits Jeep Models with OEM or aftermarket 1310 series CV Driveshaft Front/Rear

DIMENSIONS

Fits 1310 U-Joint
- (3.219 inches) 3-7/32 inches between locating tabs on centering yoke
- (1.062 inches) 1-1/16 inch dimension of saddle to hold U-Joint Bearing cap
Bolt Holes are 5/16 - 24 fine thread
- Bolt hole spacing 1.500 inches across u-joint cap
- Bolt hole spacing 2.343 inches side to side
Fits .500 inch stud diameter

Dana Spicer 211355X GREASEABLE CV Centering Yoke for 1997 to 2006 Jeep Wrangler TJ with OEM or aftermarket 1310 series CV Driveshaft front/rear

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $56.95

Dana Spicer 211355X

Jeep CV Driveshaft Centering Yoke 1310 Series

Use on 1997 to 2006 Jeep Wrangler TJ front/rear 1310 series CV Driveshaft to repair or rebuild Double Cardan Joint

Fits Jeep Models with OEM or aftermarket 1310 series CV Driveshaft Front/Rear

DIMENSIONS

Fits 1310 U-Joint
- (3.219 inches) 3-7/32 inches between locating tabs on centering yoke
- (1.062 inches) 1-1/16 inch dimension of saddle to hold U-Joint Bearing cap
Bolt Holes are 5/16 - 24 fine thread
- Bolt hole spacing 1.500 inches across u-joint cap
- Bolt hole spacing 2.343 inches side to side
Fits .500 inch stud diameter

Dana Spicer 211355X GREASEABLE CV Centering Yoke for 1997 to 2006 Jeep Wrangler TJ with OEM or aftermarket 1310 series CV Driveshaft front/rear
