Dana Spicer 3-3-01646X Transfer Case Slip Yoke 1410 series for NP205, 208, 241, 243, 246, 261, 263 with 32 splines 8.070 inches long 1.886 barrel OD - NICKEL Plated

Part Number:
3-3-01646X

UPC:

023913231378

Your Cost $106.96

STATUS: IN STOCK - FREE SHIPPING

DANA SPICER 3-3-01646X

1410 Series Transfer Case Slip Yoke 32 spline for New Process NP 205, 208, 241, 243, 246, 261, 263
DOES NOT FIT CHEVY 261XHD or 263XHD Transfer case

1410 Series
Nickel Plated
Length to center of u-joint... Dimension #1 = 8.070 inches
Barrel Diameter... Dimension #2 = 1.885 inches
Barrel Length... Dimension #3 = 5 3/4 inches
U-joint cap diameter... Dimension #4 = 1 3/16 inches
U-joint width... Dimension #5 = 4 3/16 inches
Series... 1410
Spline count... 32

Dana Spicer 3-3-01646X Transfer Case Slip Yoke 32 spline 1410 series for NP205, 208, 241, 243, 246, 261, 263 8.070 inches long 1.886 barrel OD - NICKEL Plated

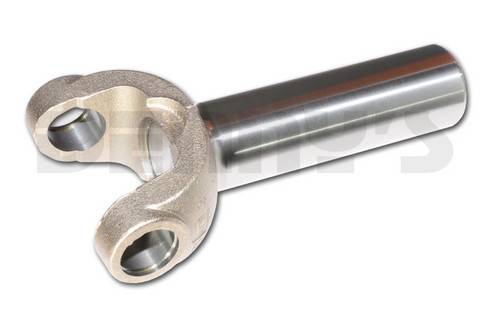

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $106.96

DANA SPICER 3-3-01646X

1410 Series Transfer Case Slip Yoke 32 spline for New Process NP 205, 208, 241, 243, 246, 261, 263
DOES NOT FIT CHEVY 261XHD or 263XHD Transfer case

1410 Series
Nickel Plated
Length to center of u-joint... Dimension #1 = 8.070 inches
Barrel Diameter... Dimension #2 = 1.885 inches
Barrel Length... Dimension #3 = 5 3/4 inches
U-joint cap diameter... Dimension #4 = 1 3/16 inches
U-joint width... Dimension #5 = 4 3/16 inches
Series... 1410
Spline count... 32

Dana Spicer 3-3-01646X Transfer Case Slip Yoke 32 spline 1410 series for NP205, 208, 241, 243, 246, 261, 263 8.070 inches long 1.886 barrel OD - NICKEL Plated
