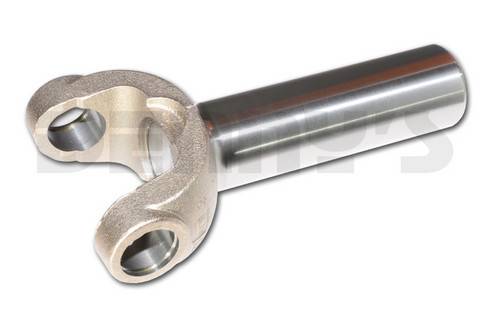

Dana Spicer 3-3-01646X Transfer Case Slip Yoke 1410 series for NP205, 208, 241, 243, 246, 261, 263 with 32 splines 8.070 inches long 1.886 barrel OD - NICKEL plated
Part Number:
3-3-01646X


UPC:
023913231378
Your Cost $106.96
STATUS:  IN STOCK - FREE SHIPPING

DANA SPICER 3-3-01646X

1410 Series Transfer Case Slip Yoke 32 spline for New Process NP 205, 208, 241, 243, 246, 261, 263

DOES NOT FIT CHEVY 261XHD Transfer case



Spicer
Dana Spicer 3-3-01646X Transfer Case Slip Yoke 1410 series for NP205, 208, 241, 243, 246, 261, 263 with 32 splines 8.070 inches long 1.886 barrel OD - NICKEL plated
Dana Spicer 3-3-01646X Transfer Case Slip Yoke 32 spline 1410 series for NP205, 208, 241, 243, 246, 261, 263, 8.070 inches long
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $106.96

DANA SPICER 3-3-01646X

1410 Series Transfer Case Slip Yoke 32 spline for New Process NP 205, 208, 241, 243, 246, 261, 263

  • 1410 Series
  • Nickel Plated
  • Length to center of u-joint... Dimension #1 =  8.070 inches
  • Barrel Diameter... Dimension #2 = 1.885 inches
  • Barrel Length... Dimension #3 =  5 3/4 inches
  • U-joint cap diameter... Dimension #4 = 1 3/16 inches
  • U-joint width... Dimension #5 = 4 3/16 inches
  • Series... 1410
  • Spline count... 31/32

Dana Spicer 3-3-01646X Transfer Case Slip Yoke 1410 series for NP205, 208, 241, 243, 246, 261, 263 with 32 splines 8.070 inches long 1.886 barrel OD - NICKEL plated

Dana Spicer 3-3-01646X Transfer Case Slip Yoke 32 spline 1410 series for NP205, 208, 241, 243, 246, 261, 263, 8.070 inches long

You May Also Need These Parts to Complete the Job

Dana Spicer 5-160X Universal Joint 1410 Series
$24.95
Dana Spicer 5-1410X Universal Joint 1410 Series NON Greaseable
$31.95
