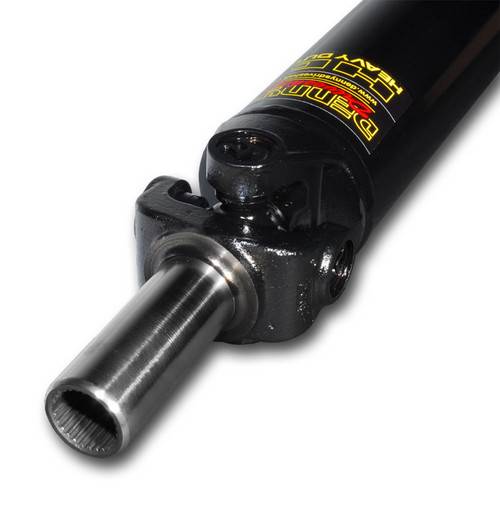

Denny's SRHD35-S2 Street Rod HD Driveshaft 3.5 inch Stage 2 complete with Dana Spicer U-Joints and Sonnax 1330 Forged Slip Yoke

Part Number:
SRHD35-S2

UPC:

Your Cost $705.95

STATUS: CUSTOM BUILT - 5 WEEK BACKLOG ON NEW ORDERS

Denny's SRHD35-S2

Street Rod HD Driveshaft 3.5 inch Stage 2 with Sonnax 1330 Slip Yoke

STAGE 2 Includes:

Large 3.5 inch Diameter Tube - DOM Steel
- Bigger is better for long length drivelines and also to achieve a higher safe critical speed if needed.
SONNAX 1330 series FORGED SLIP YOKE
Dana Spicer NON Greaseable Universal Joints
- FRONT universal joint 1330 series to match slip yoke
- REAR universal joint can be 1330, 1350, 7290, 3R to match your rear end pinion yoke.
All Denny's Driveshafts are High Speed - High RPM Balanced and Tested for smooth operation
Comes Fully Assembled and ready to bolt in!

Denny's SRHD35-S2 Street Rod HD Driveshaft 3.5 inch Stage 2 complete with Dana Spicer U-Joints and Sonnax 1330 Forged Slip Yoke

STATUS: CUSTOM BUILT - 5 WEEK BACKLOG ON NEW ORDERS

YOUR COST: $705.95

Denny's SRHD35-S2

Street Rod HD Driveshaft 3.5 inch Stage 2 with Sonnax 1330 Slip Yoke

STAGE 2 Includes:

Large 3.5 inch Diameter Tube - DOM Steel
- Bigger is better for long length drivelines and also to achieve a higher safe critical speed if needed.
- "IF YOU CAN POSSIBLY TWIST OUR STREET ROD STEEL DRIVESHAFT TUBING OR BREAK OUR WELDS...WE'LL REPLACE IT FREE"
- All Denny's Driveshafts are assembled using the latest computer controlled welding equipment for the strongest welds possible.
SONNAX 1330 series FORGED SLIP YOKE
- Available to fit all 27 and 32 spline GM automatic transmissions
- Available to fit all 27 and 32 spline Muncie, Borg Warner, AutoGear, Saginaw, Richmond
- Available to fit 28 and 31 spline Ford C4, C6, AOD, 4R70W automatics
- Available to fit 28 and 31 spline T5, T10, Top Loader, Tremec TKO 600, T56 Magnum
Dana Spicer NON Greaseable Universal Joints
- FRONT universal joint 1330 series to match slip yoke
- REAR universal joint can be 1330, 1350, 7290, 3R to match your rear end pinion yoke.
All Denny's Driveshafts are High Speed - High RPM Balanced and Tested for smooth operation. This is priceless when it comes to customer satisfaction!
All Denny's Driveshafts come Fully Assembled and ready to bolt in!
- Denny's Free Lifetime Labor means for example if you ever need it shortened, re-balanced, change u-joints....the Labor is FREE
  - Please see our Free Lifetime Labor page for details. CLICK HERE

HOW TO MEASURE

You have 2 choices ...see both choices below

CHOICE >>>>>> If your rear end has a u-bolt or strap and bolt style PINION YOKE then use Diagram "B":

MAXIMUM LENGTH restrictions for SRHD35-S2:
- DIAGRAM "B" ...Number "B6" should be approximately 63 inches or less.
CLICK HERE to see Diagram "B" now

CHOICE >>>>>> Use Diagram "K" ONLY if you have a Ford 8.8 or JAG rear with a FLAT FLANGE.

PLEASE NOTE: There will be an Additional cost for the correct flange yoke.
MAXIMUM LENGTH restrictions for SRHD35-S2:
- DIAGRAM "K" ...Number "55" should be approximately 65 inches or less.
  - CLICK HERE to see Diagram "K" now
- DIAGRAM "L" ...we will also need NUMBERS 58, 59 and 60 on this page to build your order
  - CLICK HERE to see Diagram "L" now

OVERSIZE PACKAGE: Sorry ... this item DOES NOT qualify for Free Shipping!
