NEAPCO 2-0291 Universal Joint for 1941-1952 Oldsmobile, 1950 to 1955 Pontiac Wing Style Rear to 1310 series driveshaft

Part Number:
2-0291

UPC:

083869209210

Your Cost $68.30

STATUS: IN STOCK

NEAPCO 2-0291

Outside snap ring to Wing style conversion u-joint

1310 Series to 1941-1952 Oldsmobile Wing Style Combination Universal Joint.
1310 Series to 1950 to 1955 Pontiac Wing Style Combination Universal Joint.
Greaseable

NEAPCO 2-0291 Universal Joint for 1941-1952 Oldsmobile, 1950 to 1955 Pontiac Wing Style Rear to 1310 series driveshaft

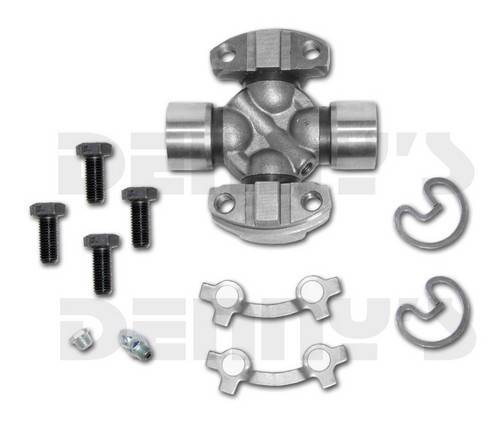

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $68.30

NEAPCO 2-0291

Outside snap ring to Wing style conversion u-joint

1310 Series to 1941-1952 Oldsmobile Wing Style Combination Universal Joint.
1310 Series to 1950 to 1955 Pontiac Wing Style Combination Universal Joint.
Greaseable

This is a very handy u-joint when connecting a newer 1310 series driveshaft to a stock 1941-1952 Oldsmobile, 1950 to 1955 Pontiac Wing Style pinion Flange.

This is what you need when you upgrade the engine and transmission to a newer more modern driveline while keeping the stock rear end.

GREASEABLE U-Joint
1310 series
- G = 3.219 inches (3 7/32) wide across bearing caps
- D = 2 bearing caps are 1.062 inch (1 1/16) diameter
- Designed for Outside snap ring style 1310 series driveshaft yokes

WING STYLE
- C = 3.125 inches (3 1/8) pilot diameter...this is the distance between the raised shoulders on pinion flange that centers the u-joint.
- LWT wing style 2 bearing caps with threaded holes
- S = 1.312 inches between threaded bolt holes on bearing cap
- Designed for original equipment 1941-1952 Oldsmobile, 1950 to 1955 Pontiac Wing Style Pinion Flange

PLEASE NOTE: This u-joint will not fit the original stock driveshaft. It is designed to fit a newer 1310 series driveshaft ONLY

Outside snap ring style to Wing style conversion u-joints at Denny's Driveshafts
