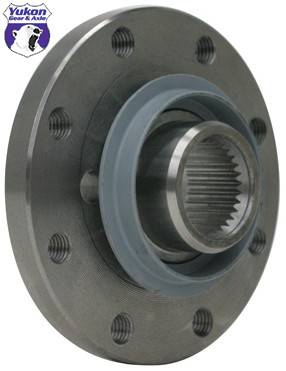

Yukon YY F100606 Pinion Companion Flange 31 splines fits 1993 to 2007 Ford Super Duty with 10.25 and 10.5 inch rear end - replaces OEM 2C3Z4851AB

Part Number:
YY F100606

UPC:

883584410430

Your Cost $112.61

STATUS: IN STOCK - FREE SHIPPING

Yukon YY F100606

Description
- Ford Rear End Pinion Companion Flange
Application
- 1993 to 1998 Ford 10.25 inch rear ends
- 1999 to 2007 Ford 10.5 inch rear ends
Pilot Diameter
- 2.953 inch
Splines
- 31
Seal surface diameter
- 1.812 inch - fits OEM seal
Series
- Can be used with 1350, 1410 or 1480 series flange yoke
Distance through splined hole
- 1.635 inch
Counterbore
- YES
- Diameter = 1.395 inch
- Depth = .090 inch
Bolt Circle
- 4.75 inch measured diagonally
Bolt holes
- 8 threaded holes available - Only 4 bolts are required for mounting the flange yoke
- 12 mm metric
  - See bottom of page for bolt set
Comments
- See bottom of page for available flange yoke choices
- Replacement for OEM Ford part number 2C3Z4851AB

Yukon YY F100606 Pinion Companion Flange 31 splines fits 1993 to 2007 Ford Super Duty with 10.25 and 10.5 inch rear end - replaces OEM 2C3Z4851AB

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $112.61

Yukon YY F100606

Description
- Ford Rear End Pinion Companion Flange
Application
- 1993 to 1998 Ford 10.25 inch rear ends
- 1999 to 2007 Ford 10.5 inch rear ends
Pilot Diameter
- 2.953 inch
Splines
- 31
Seal surface diameter
- 1.812 inch - fits OEM seal
Series
- Can be used with 1350, 1410 or 1480 series flange yoke
Distance through splined hole
- 1.635 inch
Counterbore
- YES
- Diameter = 1.395 inch
- Depth = .090 inch
Bolt Circle
- 4.75 inch measured diagonally
Bolt holes
- 8 threaded holes available - Only 4 bolts are required for mounting the flange yoke
- 12 mm metric
  - See bottom of page for bolt set
Comments
- See bottom of page for available flange yoke choices
- Replacement for OEM Ford part number 2C3Z4851AB

Also known as part #: YYF100606

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.
