DANA 80 REAR - FORD > BEARINGS - SEALS - SHIMS > SHIMS

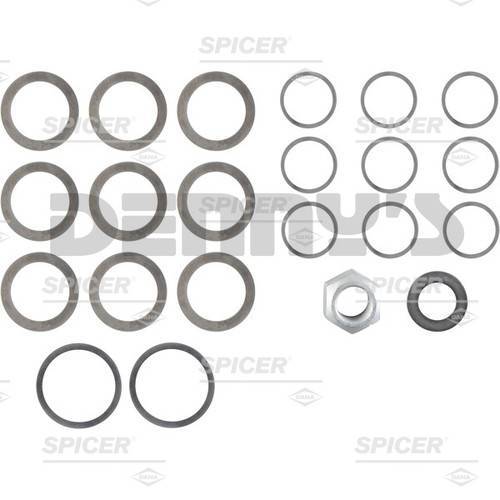

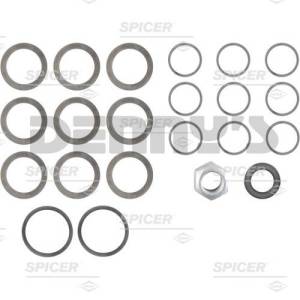

Dana Spicer 707481X ASSORTED SHIM KIT with spacers fits Dana 80 REAR end 1999 to 2015 Ford Van E350, E450, Pickup F350, F450
Part Number:
707481X


UPC:
023913148997
Diagram Number:
5,11,12,20,21
Your Cost $83.95 Sale Price $75.95
You Save $8.00
STATUS:  IN STOCK

DANA SPICER 707481X

SHIM Kit - For Differential Side bearings and Outer Pinion Bearing

  • Fits Dana 80 Rear
  • Fits Ford E350, E450 Van
    • 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
  • Fits Ford F350, F450 Pickup
    • 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015

INCLUDES

  • (9) Diff Side Bearing Shims
    • 2.765 OD
    • 2.025 ID
    • various thickness .038 to .052
  • (2) Outboard Diff Side Bearing preload spacers
    • 3.035 OD
    • 2.525 ID
    • .030 thickness
  • (9) Outer Pinion Bearing Shims
    • 1.970 OD
    • 1.640 ID
    • various thickness .010 to .030
  • (1) 2001855 Pinion Nut
  • (1) 37104 Washer

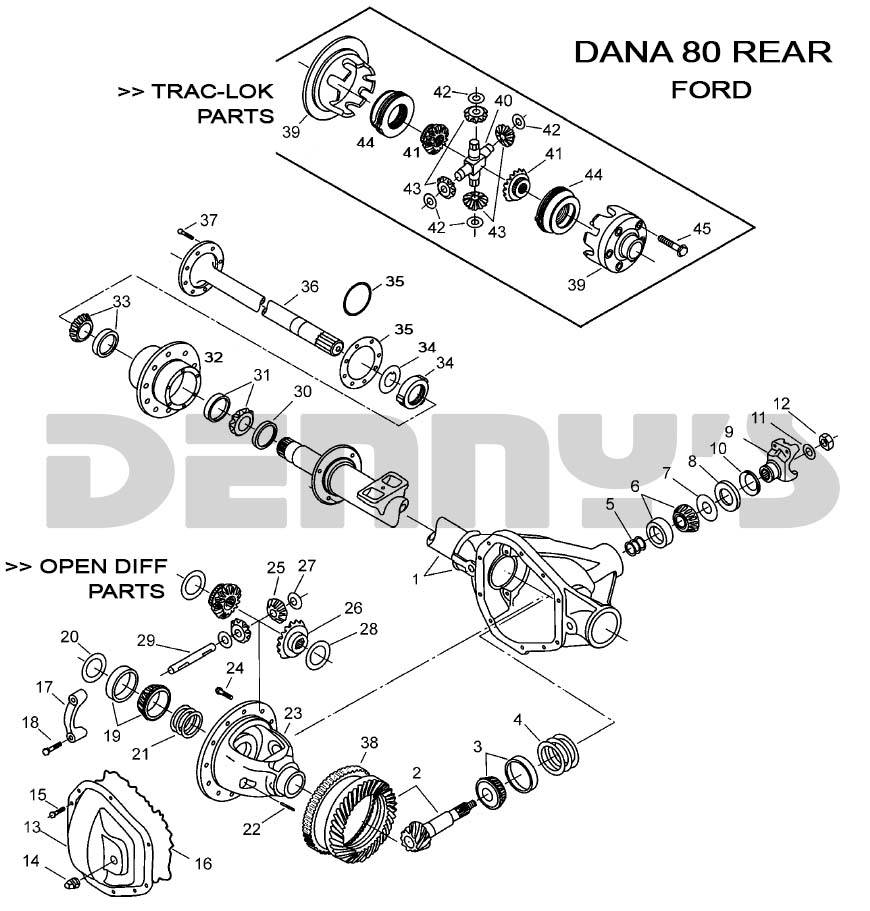

Exploded View Number 5, 11, 12, 20, 21

Spicer
Dana Spicer 707481X ASSORTED SHIM KIT with spacers fits Dana 80 REAR end 1999 to 2015 Ford Van E350, E450, Pickup F350, F450
Dana Spicer 707481X ASSORTED SHIM KIT with spacers fits Dana 80 REAR end 1999 to 2015 Ford Van E350, E450, Pickup F350, F450
Click for Larger Photo
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $83.95 Sale Price $75.95
You Save $8.00

DANA SPICER 707481X

SHIM Kit - For Differential Side bearings and Outer Pinion Bearing

  • Fits Dana 80 Rear
  • Fits Ford E350, E450 Van
    • 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
  • Fits Ford F350, F450 Pickup
    • 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015

INCLUDES

  • (9) Diff Side Bearing Shims
    • 2.765 OD
    • 2.025 ID
    • various thickness .038 to .052
  • (2) Outboard Diff Side Bearing preload spacers
    • 3.035 OD
    • 2.525 ID
    • .030 thickness
  • (9) Outer Pinion Bearing Shims
    • 1.970 OD
    • 1.640 ID
    • various thickness .010 to .030
  • (1) 2001855 Pinion Nut
  • (1) 37104 Washer

Exploded View Number 5, 11, 12, 20, 21
