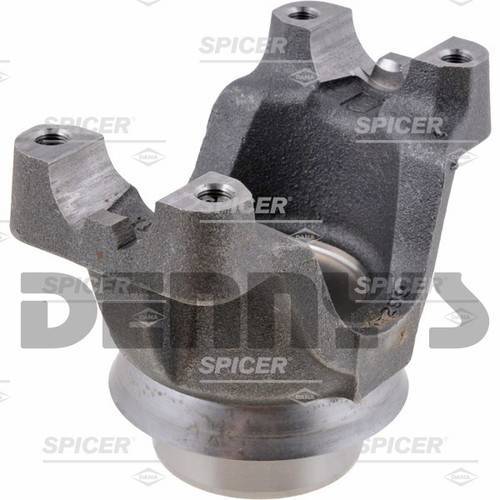

DANA 80 REAR - FORD > PINION YOKE/FLANGE

Dana Spicer 4-4-6851-1X Pinion Yoke 1550 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion

Part Number:
4-4-6851-1X

UPC:

023913219406

Diagram Number:
9

Your Cost $159.45

STATUS: IN STOCK - FREE SHIPPING

Dana Spicer 4-4-6851-1X

Pinion Yoke

1550 Series
Fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion
Strap and Bolt style

SPLINE OD = 1.609
D = 1.375
E = 4.964
Q = 2.000
R = 2.500
S = 4.406
COUNTERBORE DEPTH = .240

NOTE: Dust shield on this yoke may not match your original and can be easily removed if necessary.

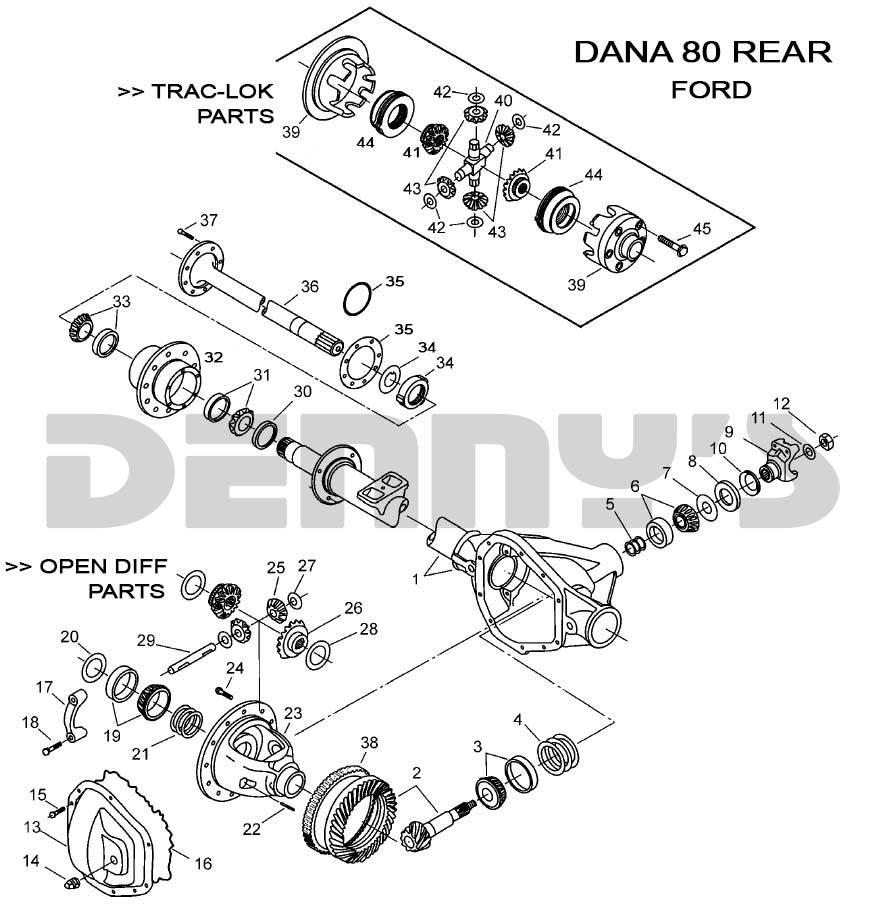

Exploded View number 9

Spicer

Dana Spicer 4-4-6851-1X Pinion Yoke 1550 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion

Dana Spicer 4-4-6851-1X Pinion Yoke 1550 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $159.45

Dana Spicer 4-4-6851-1X

Pinion Yoke

1550 Series
Fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion
Strap and Bolt style

SPLINE OD = 1.609
D = 1.375
E = 4.964
Q = 2.000
R = 2.500
S = 4.406
COUNTERBORE DEPTH = .240

NOTE: Dust shield on this yoke may not match your original and can be easily removed if necessary.

Exploded View number 9

image/jpeg

Dana Spicer 4-4-6851-1X Pinion Yoke 1550 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion

Dana Spicer 4-4-6851-1X Pinion Yoke 1550 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion

You May Also Need These Parts to Complete the Job

Dana Spicer 5-155X Universal Joint 1550 Series Greaseable Part#: 5-155X $45.95	Dana Spicer SPL70X Universal Joint 1550 Series Non Greaseable Part#: SPL70X $56.95
Dana Spicer SPL70-1X Universal Joint 1550 Series GREASEABLE Part#: SPL70-1X $59.88	Dana Spicer 2001855 PINION NUT for Dana 80 rear end Chevy, GMC, Ford, Dodge Part#: 2001855 $9.60
Dana Spicer 37104 PINION WASHER fits Chevy, GMC, Ford, Dodge DANA 80 rear end Part#: 37104 $2.45	DANA SPICER 3-70-38X Strap and Bolt set fits 1.375 bearing cap diameter 2.130 CL on 1480 and 1550 series end yokes, transmission, transfer case and differential yokes Part#: 3-70-38X $9.95
