DANA 80 REAR - DODGE > PINION YOKE/FLANGE

Dana Spicer 3-4-11281-1X Pinion Yoke 1480 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion

Part Number:
3-4-11281-1X

UPC:

023913214395

Diagram Number:
9

Your Cost $86.19

STATUS: IN STOCK

Dana Spicer 3-4-11281-1X

Pinion Yoke

1480 Series
Fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion
Strap and Bolt style

SPLINE OD = 1.609
D = 1.375
E = 4.188
Q = 2.000
R = 2.500
S = 4.328
COUNTERBORE DEPTH = .240

NOTE: Dust shield on this yoke may not match your original and can be easily removed if necessary.

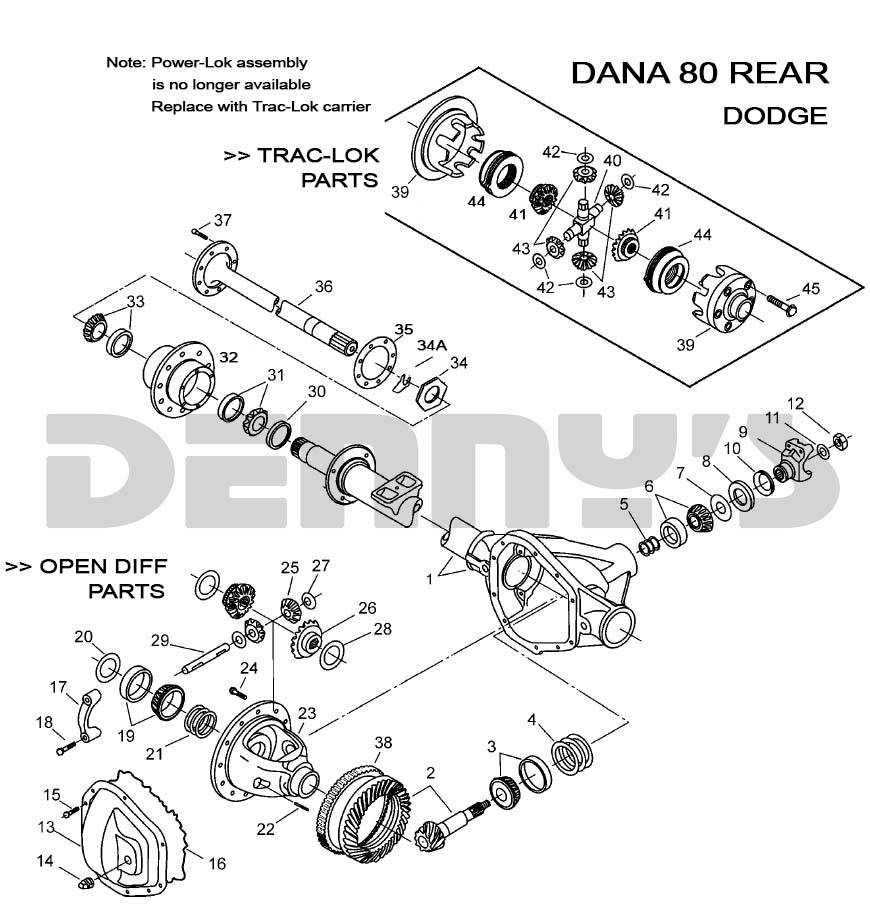

Exploded View number 9

Spicer

Dana Spicer 3-4-11281-1X Pinion Yoke 1480 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion

Dana Spicer 3-4-11281-1X Pinion Yoke 1480 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $86.19

Dana Spicer 3-4-11281-1X

Pinion Yoke

1480 Series
Fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion
Strap and Bolt style

SPLINE OD = 1.609
D = 1.375
E = 4.188
Q = 2.000
R = 2.500
S = 4.328
COUNTERBORE DEPTH = .240

NOTE: Dust shield on this yoke may not match your original and can be easily removed if necessary.

Exploded View number 9

image/jpeg

Dana Spicer 3-4-11281-1X Pinion Yoke 1480 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion

Dana Spicer 3-4-11281-1X Pinion Yoke 1480 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion

You May Also Need These Parts to Complete the Job

Dana Spicer 5-188X UNIVERSAL JOINT 1480 series Greaseable U-joint Part#: 5-188X $31.34	Dana Spicer SPL55X Universal Joint 1480 series NON Greaseable u-joint Part#: SPL55X $41.98
Dana Spicer 2001855 PINION NUT for Dana 80 rear end Chevy, GMC, Ford, Dodge Part#: 2001855 $9.60	Dana Spicer 37104 PINION WASHER fits Chevy, GMC, Ford, Dodge DANA 80 rear end Part#: 37104 $2.70
DANA SPICER 3-70-38X Strap and Bolt set fits 1.375 bearing cap diameter 2.130 CL on 1480 and 1550 series end yokes, transmission, transfer case and differential yokes Part#: 3-70-38X $10.26
