DANA 80 REAR - FORD > PINION YOKE/FLANGE

Dana Spicer 3-4-14391-1X Pinion Yoke With dust shield 1410 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion

Part Number:
3-4-14391-1X

UPC:

023913232115

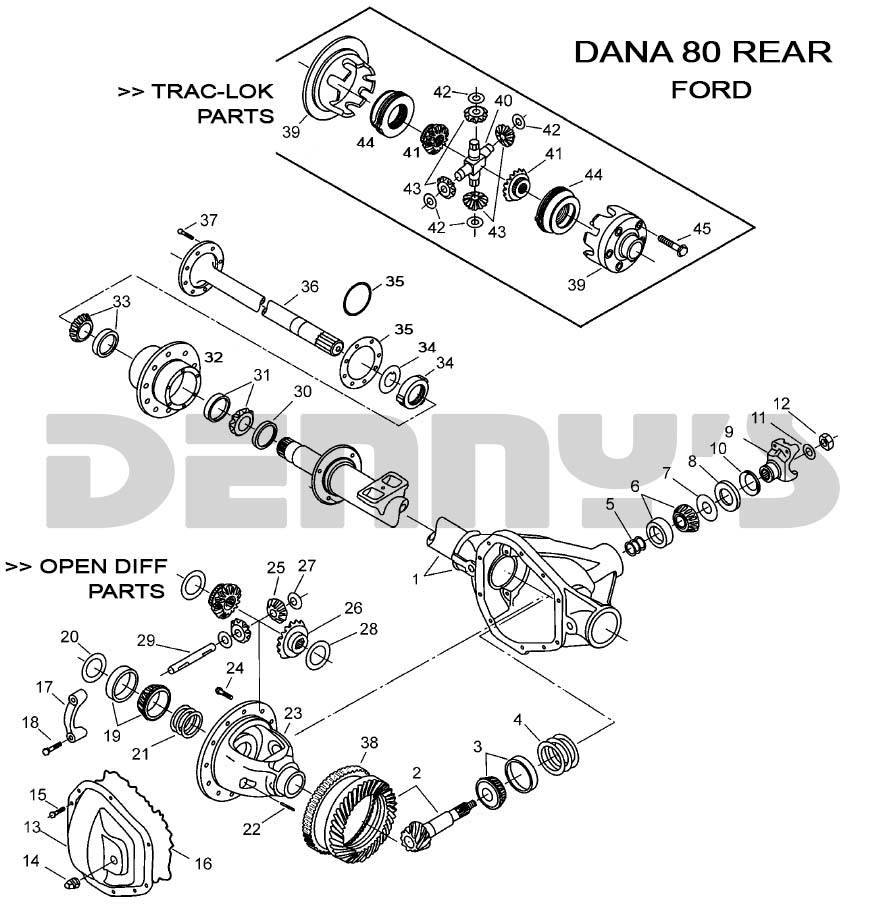

Diagram Number:
9

Your Cost $76.95

Sorry, sold out

CLICK HERE to be NOTIFIED when this item is available

STATUS: SOLD OUT...More Coming Soon

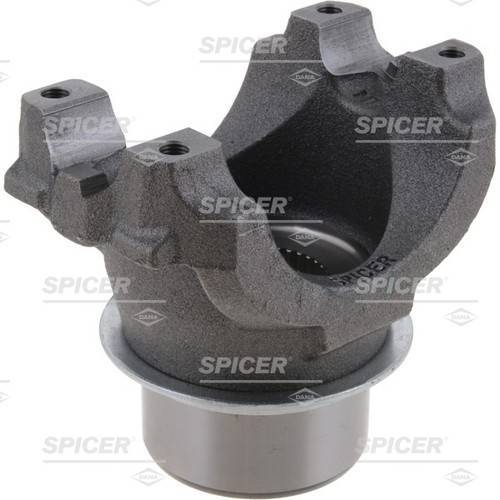

Dana Spicer 3-4-14391-1X

Pinion Yoke - Dana 80

1410 Series
Fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion
Strap and Bolt style

SPLINE OD = 1.609
D = 1.188
E = 4.188
Q = 2.000
R = 2.500
S = 4.312
COUNTERBORE DEPTH = .240

NOTE: Dust shield on this yoke may not match your original and can be easily removed if necessary.

Spicer

Dana Spicer 3-4-14391-1X Pinion Yoke With dust shield 1410 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion

Dana Spicer 3-4-14391-1X Pinion Yoke With dust shield 1410 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: SOLD OUT...More Coming Soon

YOUR COST: $76.95

Dana Spicer 3-4-14391-1X

Pinion Yoke - Dana 80

1410 Series
Fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion
Strap and Bolt style

SPLINE OD = 1.609
D = 1.188
E = 4.188
Q = 2.000
R = 2.500
S = 4.312
COUNTERBORE DEPTH = .240

NOTE: Dust shield on this yoke may not match your original and can be easily removed if necessary.

image/jpeg

Dana Spicer 3-4-14391-1X Pinion Yoke With dust shield 1410 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion

Dana Spicer 3-4-14391-1X Pinion Yoke With dust shield 1410 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion

You May Also Need These Parts to Complete the Job

Dana Spicer 5-160X Universal Joint 1410 Series Part#: 5-160X $24.95	Dana Spicer 5-1410X Universal Joint 1410 Series NON Greaseable Part#: 5-1410X $31.95
Dana Spicer 2001855 PINION NUT for Dana 80 rear end Chevy, GMC, Ford, Dodge Part#: 2001855 $9.60	Dana Spicer 37104 PINION WASHER fits Chevy, GMC, Ford, Dodge DANA 80 rear end Part#: 37104 $2.45
DANA SPICER 3-70-28X Strap and Bolt set fits 1.188 bearing cap diameter 1.806 CL on 1350/1410 series Dana Spicer brand end yokes Part#: 3-70-28X $7.95
