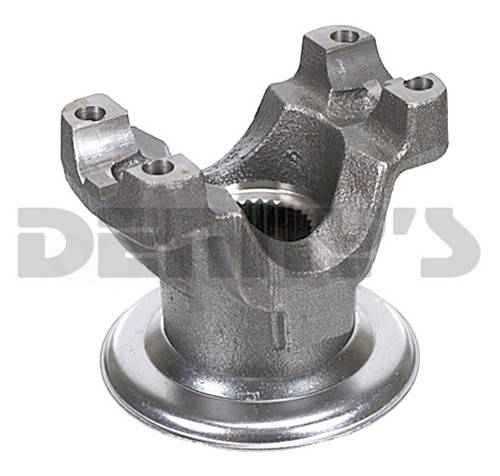

FORD 9 inch > PINION YOKES > Fits 3.625 inch U-Joint - 1330 series

Neapco N2-4-FD02X PINION YOKE 1330 Series 28 splines fits Ford 9 inch rear end 1.062 Bearing cap 4 inches tall

Part Number:
N2-4-FD02X

UPC:

083869002958

Your Cost $108.59

STATUS: IN STOCK - FREE SHIPPING

Neapco N2-4-FD02X

Ford 9 inch Pinion Yoke
- Fits all Ford 9 inch rear ends with 28 spline pinion gear
1330 series
28 splines
4 inches tall
U-Bolt style

Fits universal joint 3.625 cap to cap with 1.062 Bearing caps

DIMENSIONS

SPLINE OD = 1.235
D = 1.062
E = 3.625
Q = 2.42
R = 1.81
S = 4.03

Neapco

Neapco N2-4-FD02X PINION YOKE 1330 Series 28 splines fits Ford 9 inch rear end 1.062 Bearing cap 4 inches tall

Neapco N2-4-FD02X PINION YOKE 1330 Series 28 splines fits Ford 9 inch rear end 1.062 Bearing cap 4 inches tall

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $108.59

Neapco N2-4-FD02X

Ford 9 inch Pinion Yoke
- Fits all Ford 9 inch rear ends with 28 spline pinion gear
1330 series
28 splines
4 inches tall
U-Bolt style

Fits universal joint 3.625 cap to cap with 1.062 Bearing caps

DIMENSIONS

SPLINE OD = 1.235
D = 1.062
E = 3.625
Q = 2.42
R = 1.81
S = 4.03

image/jpeg

Neapco N2-4-FD02X PINION YOKE 1330 Series 28 splines fits Ford 9 inch rear end 1.062 Bearing cap 4 inches tall

Neapco N2-4-FD02X PINION YOKE 1330 Series 28 splines fits Ford 9 inch rear end 1.062 Bearing cap 4 inches tall

You May Also Need These Parts to Complete the Job

TIMKEN 7044NA Pinion Seal fits Ford 9 inch rear end Part#: 7044NA $13.96	NEAPCO 2-4800 - 1330 Series Greaseable Universal Joint Part#: 2-4800 ~~$18.25~~ $17.38
Dana Spicer 5-213X Universal Joint 1330 Series Greaseable U-Joint Part#: 5-213X $19.19	DANA SPICER 5-1330X - Universal Joint 1330 Series with (4) 1.062 Bearing Caps NON Greaseable Part#: 5-1330X $20.77
Dana Spicer 2-94-28X U-BOLT SET 1310-1330 Series for 1.062 bearing cap diameter Part#: 2-94-28X $5.98
