Dana Spicer 2-94-58X U-Bolt Set fits 1.125 bearing cap diameter 1.590 CL for FORD Big Cap 1310 or 1330 pinion yoke, transfer case yoke or transmission yoke

Part Number:
2-94-58X

UPC:

023913231033

Your Cost $6.85

Sorry, sold out

CLICK HERE to be NOTIFIED when this item is available

STATUS: SOLD OUT...More Coming Soon

Dana Spicer 2-94-58X

U-Bolt Set

Fits 1.125 cap x 1.590 CL

1310-1330 Series FORD U-Bolts. Use on any FORD 8 inch 1310 series pinion yoke or FORD 9 inch 1310 or 1330 series pinion yoke designed for a 1.125 ( 1 1/8th ) bearing cap diameter. U-bolt set comes with (2) U-bolts (4) lock washers and (4) nuts. Replace that old stretched out original set with a new one.

Dana Spicer 2-94-58X U-Bolt Set fits 1.125 bearing cap diameter 1.590 CL for FORD Big Cap 1310 or 1330 pinion yoke, transfer case yoke or transmission yoke

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: SOLD OUT...More Coming Soon

YOUR COST: $6.85

Dana Spicer 2-94-58X

U-Bolt Set

Fits 1.125 cap x 1.590 CL

1310-1330 Series FORD U-Bolts.

Use on any FORD 8 inch 1310 series pinion yoke designed for a 1.125 ( 1 1/8th ) bearing cap diameter.
Use on any FORD 9 inch 1310 or 1330 series pinion yoke designed for a 1.125 ( 1 1/8th ) bearing cap diameter.
Use on FORD 1310 or 1330 series transfer case yoke designed for a 1.125 ( 1 1/8th ) bearing cap diameter.
Use on FORD 1310 or 1330 series transmission yoke designed for a 1.125 ( 1 1/8th ) bearing cap diameter.
FITS BEARING CAP = 1 1/8 (1.125) inches

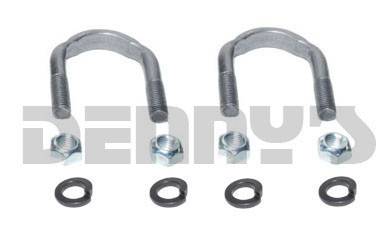

U-bolt set comes with (2) U-bolts (4) lock washers and (4) nuts.
Replace that old stretched out original set with a new one.

	Model/Part #: 2-94-58X
Series	1310/1330 SPECIAL
Thread Dia.	.312-24
C/L to C/L	1.590
Fits Brg. Cap Dia.	1.125
U-Bolt No.	2-94-69
L'washer No.	500357-10
Nut No.	231421-2
Nut Torque (lb.ft)	14-17

Dana Spicer 2-94-58X U-Bolt Set fits 1.125 bearing cap diameter 1.590 CL for FORD Big Cap 1310 or 1330 pinion yoke, transfer case yoke or transmission yoke
