Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

Dana Spicer 3-4-11081-1X Pinion Yoke 1410 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion
Part Number:
3-4-11081-1X


UPC:
023913228910
Diagram Number:
9
Your Cost $142.95
STATUS:  IN STOCK - FREE SHIPPING

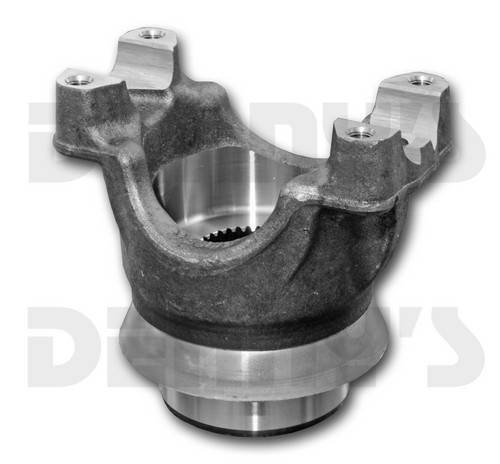

Dana Spicer 3-4-11081-1X

Pinion Yoke

  • 1410 Series
  • Fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion
  • Strap and Bolt style
  • SPLINE OD = 1.609
  • D = 1.188
  • E = 4.188
  • Q = 2.000
  • R = 2.500
  • S = 4.312
  • COUNTERBORE DEPTH = .240

NOTE: Dust shield on this yoke may not match your original and can be easily removed if necessary.

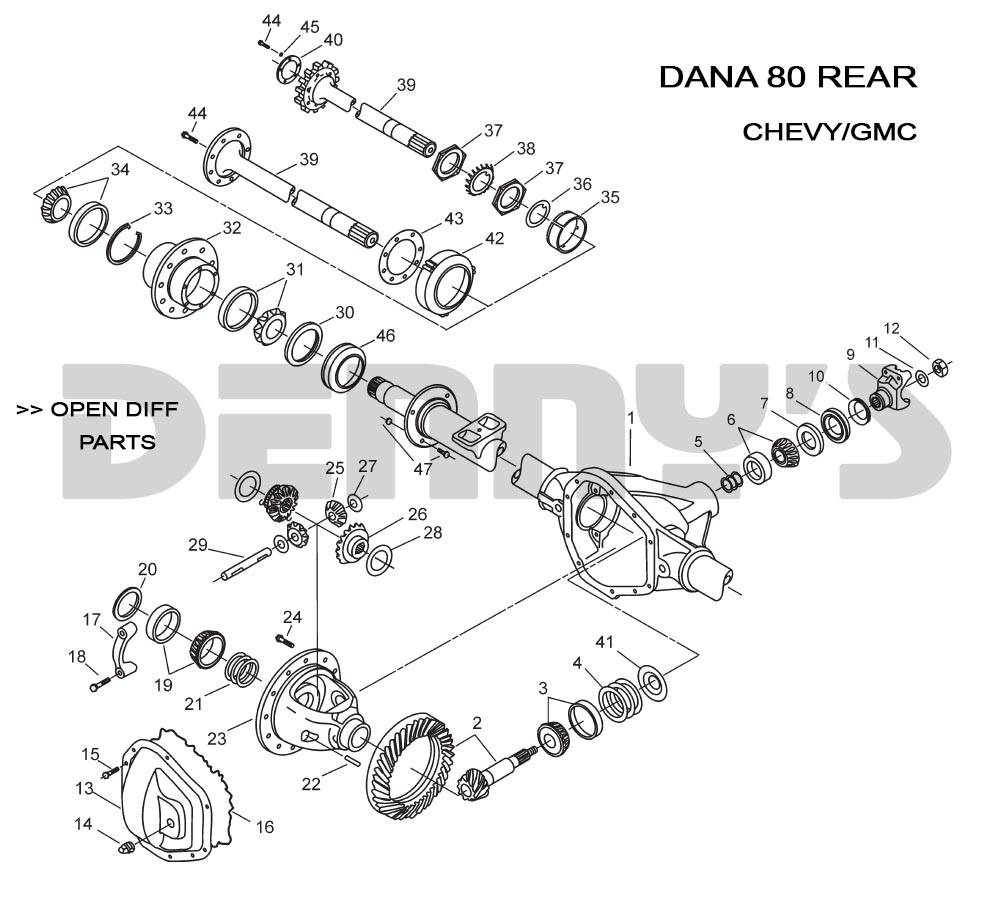

Exploded View number 9





Spicer
Dana Spicer 3-4-11081-1X Pinion Yoke 1410 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion
Dana Spicer 3-4-11081-1X Pinion Yoke 1410 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $142.95

Dana Spicer 3-4-11081-1X

Pinion Yoke

  • 1410 Series
  • Fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion
  • Strap and Bolt style
  • SPLINE OD = 1.609
  • D = 1.188
  • E = 4.188
  • Q = 2.000
  • R = 2.500
  • S = 4.312
  • COUNTERBORE DEPTH = .240

NOTE: Dust shield on this yoke may not match your original and can be easily removed if necessary.

Exploded View number 9
