DANA 60 REAR - DODGE > PINION YOKE/FLANGE > OUTSIDE SNAP RING Style > Fits 3.625 x 1.188 U-Joint - 1350 Series

Dana Spicer 3-4-5731-1X Pinion Yoke 1350 series fits all Dana 60, 61, 70 with 29 spline pinion OEM Strap & Bolt Style

Part Number:
3-4-5731-1X

UPC:

023913229986

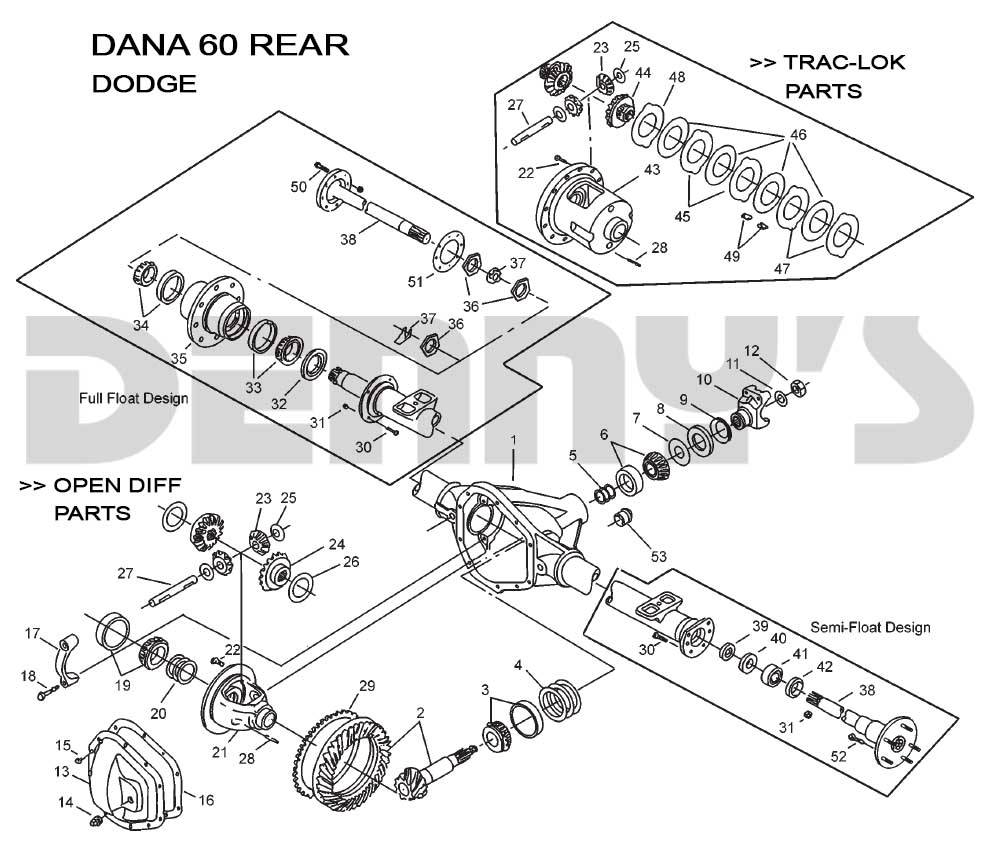

Diagram Number:
10

Your Cost $55.95

STATUS: IN STOCK

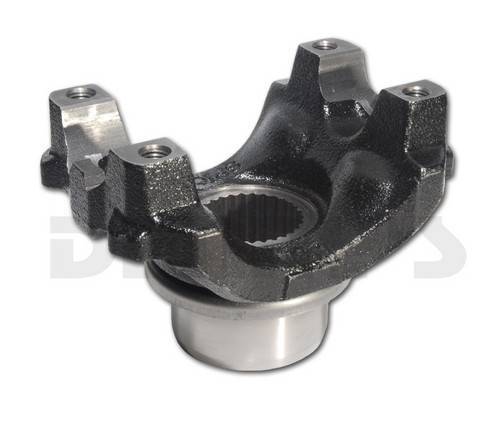

Dana Spicer 3-4-5731-1X

PINION YOKE
Fits ALL Dana 60, 61, 70 with 29 spline pinion
1350 series
OEM Strap and Bolt style

Spicer

Dana Spicer 3-4-5731-1X Pinion Yoke 1350 series fits all Dana 60, 61, 70 with 29 spline pinion OEM Strap & Bolt Style

Dana Spicer 3-4-5731-1X Pinion Yoke 1350 series fits all Dana 60, 61, 70 with 29 spline pinion OEM Strap & Bolt Style

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $55.95

Dana Spicer 3-4-5731-1X

PINION YOKE
Fits ALL Dana 60, 61, 70 with 29 spline pinion
1350 series
OEM Strap and Bolt style
- Strap and bolt set can be purchased separately at the bottom of this page.

DIMENSIONS

Fits 1350 series u-joint 3.625 inches (3 5/8) wide with 1.188 inches (1 3/16) bearing cap diameter
SPLINE OD = 1.276
D = 1.188
E = 3.625
Q = 1.500
R = 1.875
S = 3.000

Genuine Dana Spicer Pinion Yoke

image/jpeg

Dana Spicer 3-4-5731-1X Pinion Yoke 1350 series fits all Dana 60, 61, 70 with 29 spline pinion OEM Strap & Bolt Style

Dana Spicer 3-4-5731-1X Pinion Yoke 1350 series fits all Dana 60, 61, 70 with 29 spline pinion OEM Strap & Bolt Style

You May Also Need These Parts to Complete the Job

Dana Spicer 42449 Pinion Seal fits Chevy, GMC, Ford, Dodge with Dana 60 Part#: 42449 $7.95	Neapco 2-0053G universal joint 1350 Series non greaseable 3.622 x 1.188 Part#: 2-0053G ~~$24.10~~ $22.95
Dana Spicer 5-178X Greaseable u-joint 1350 Series Part#: 5-178X $20.95	Dana Spicer 5-1350X Universal Joint NON Greaseable 1350 series cold forged solid body heat treated precision ground and case hardened with multi lip seals Part#: 5-1350X $23.54
DANA SPICER 3-70-28X Strap and Bolt Set 1350/1410 Series Part#: 3-70-28X $7.95
