Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

Dana Spicer 706702X Dana 60 Open DIFF SPIDER GEAR KIT 1.50 - 35 spline fits Dodge Dana 60 Rear differential case
Part Number:
706702X


UPC:
023913133382

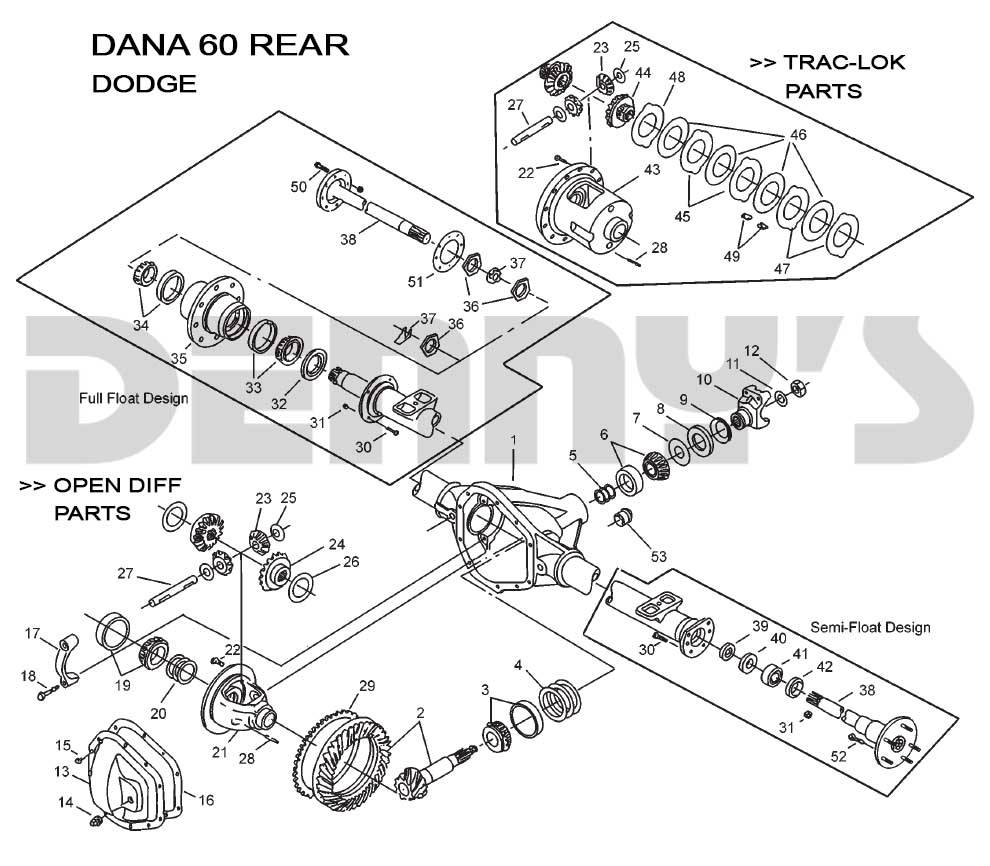

Diagram Number:
22-28
Your Cost $320.95 Sale Price $299.95
You Save $21.00
STATUS:  SOLD OUT...More Coming Soon

Dana Spicer 706702X

DIFFERENTIAL SPIDER GEAR KIT 1.50 - 35 spline

  • Fits Dodge Dana 60 Rear with 35 spline axles
  • Fits DANA 60 OPEN differential
    • OPEN DIFF - NOT positraction
    • Fits 1.50 - 35 spline axles
    • Fits all ratio open diff cases
  • 706702X spider gear kit and 706040X Case are in Dana Spicer loaded case 2005502
  • NOTE: These spider gears (706702X) have the older style original shape to the gear as compared to the newer style formed gears (708236) that look different

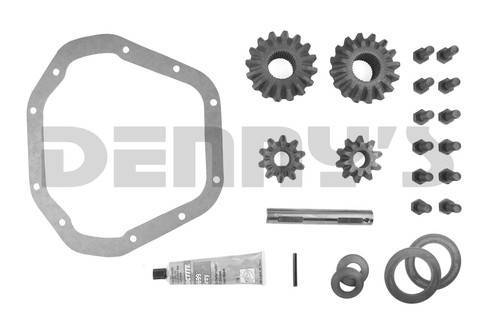

 INCLUDES:

QTY Part Description
2 35625 SIDE SPIDER GEAR 1.50 - 35 SPLINE
2 34367 SMALL SPIDER GEAR
2 34730 CUPPED THRUST WASHER
2 34729 SIDE GEAR FLAT THRUST WASHER
1 30263 DIFF CROSS SHAFT
1 34687 GASKET
1 38615 2.8 OZ TUBE SILICONE
1 44810 ROLL PIN
12 701056X RING GEAR BOLTS



Spicer
Dana Spicer 706702X Dana 60 Open DIFF SPIDER GEAR KIT 1.50 - 35 spline fits Dodge Dana 60 Rear differential case
Dana Spicer 706702X Dana 60 Open DIFF SPIDER GEAR KIT 1.50 - 35 spline fits Dodge Dana 60 Rear differential case
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  SOLD OUT...More Coming Soon
YOUR COST:  $320.95 Sale Price $299.95
You Save $21.00
This item qualifies for FREE GROUND SHIPPING to the lower 48 states

Dana Spicer 706702X

DIFFERENTIAL SPIDER GEAR KIT 1.50 - 35 spline

  • Fits Dodge Dana 60 Rear with 35 spline axles
  • Fits DANA 60 OPEN differential
    • OPEN DIFF - NOT positraction
    • Fits 1.50 - 35 spline axles
    • Fits all ratio open diff cases
  • 706702X spider gear kit and 706040X Case are in Dana Spicer loaded case 2005502
  • NOTE: These spider gears (706702X) have the older style original shape to the gear as compared to the newer style formed gears (708236) that look different

 INCLUDES:

QTY Part Description
2 35625 SIDE SPIDER GEAR 1.50 - 35 SPLINE
2 34367 SMALL SPIDER GEAR
2 34730 CUPPED THRUST WASHER
2 34729 SIDE GEAR FLAT THRUST WASHER
1 30263 DIFF CROSS SHAFT
1 34687 GASKET
1 38615 2.8 OZ TUBE SILICONE
1 44810 ROLL PIN
12 701056X RING GEAR BOLTS



Dana Spicer 706702X Dana 60 Open DIFF SPIDER GEAR KIT 1.50 - 35 spline fits Dodge Dana 60 Rear differential case

Dana Spicer 706702X Dana 60 Open DIFF SPIDER GEAR KIT 1.50 - 35 spline fits Dodge Dana 60 Rear differential case
