DANA SPICER 76627X Complete RIGHT SIDE ABS Axle Assembly with 15 SPLINE Inner fits 1994, 1995, 1996, 1997, 1998, 1999 DODGE Ram 2500HD and Ram 3500 with DANA 60 DISCONNECT Front Axle

DANA SPICER 76627X Complete RIGHT SIDE ABS Axle Assembly with 15 SPLINE Inner fits 1994, 1995, 1996, 1997, 1998, 1999 DODGE Ram 2500HD and Ram 3500 with DANA 60 DISCONNECT Front Axle - FREE SHIPPING

Part Number:
76627X

UPC:

023913135317

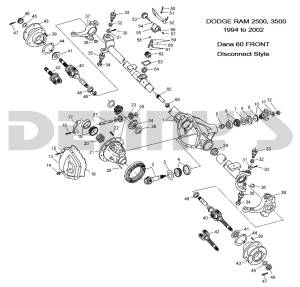

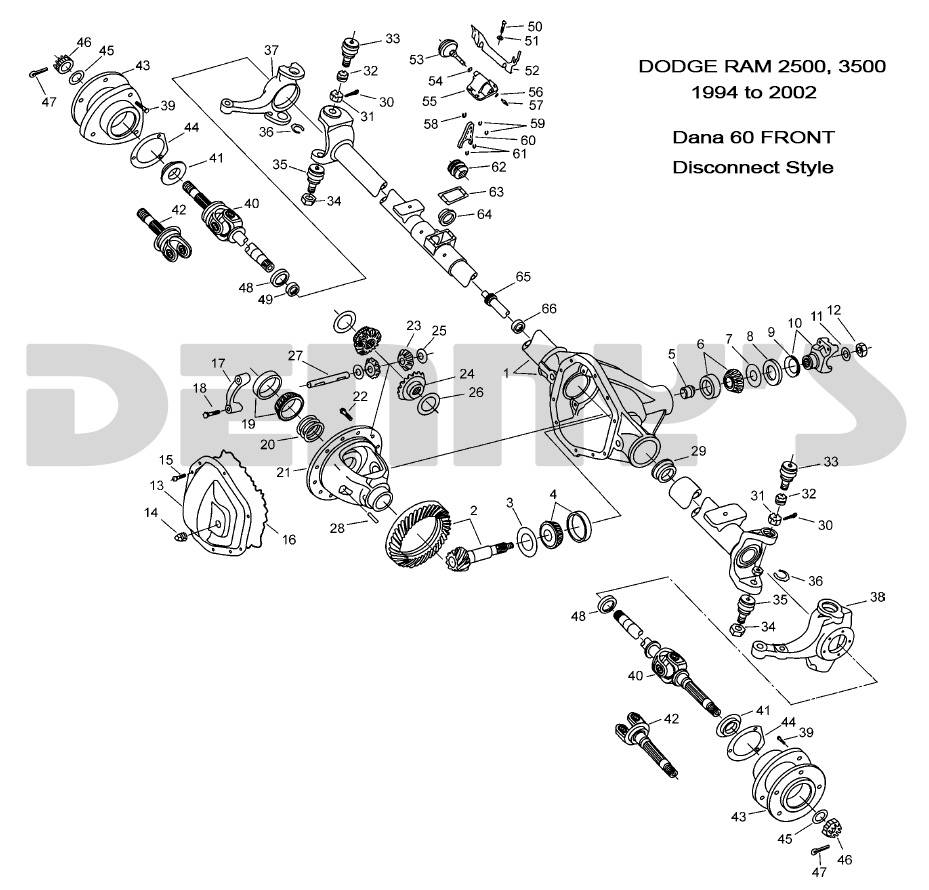

Diagram Number:
40

Your Cost $448.70

Sorry, sold out

STATUS: Discontinued Item...See other choices listed

DANA SPICER 76627X

Complete RIGHT Front Axle Assembly fits Passenger Side

Fits 1994, 1995, 1996, 1997, 1998, 1999 Dodge RAM 2500HD and 3500 4x4 with DANA 60 DISCONNECT AXLE
ABS tone ring on outer stub axle
15 spline inner for disconnect coupler

DANA SPICER 76627X Complete RIGHT SIDE ABS Axle Assembly with 15 SPLINE Inner fits 1994, 1995, 1996, 1997, 1998, 1999 DODGE Ram 2500HD and Ram 3500 with DANA 60 DISCONNECT Front Axle - FREE SHIPPING

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: Discontinued Item...See other choices listed

YOUR COST: $448.70

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

DANA SPICER 76627X

Complete RIGHT Front Axle Assembly fits Passenger Side

Fits 1994, 1995, 1996, 1997, 1998, 1999 Dodge RAM 2500HD and 3500 4x4 with DANA 60 DISCONNECT AXLE
ABS tone ring on outer stub axle
15 spline inner for disconnect coupler

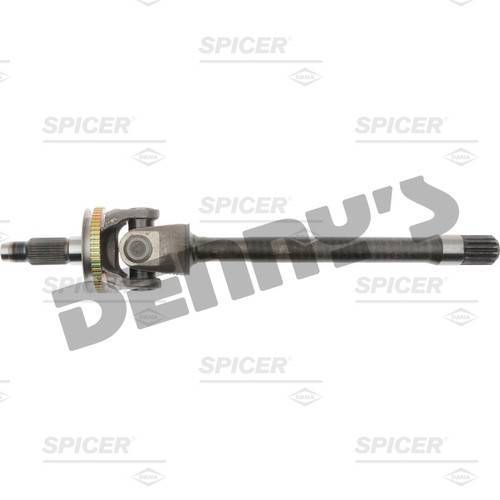

INCLUDES:

(1) OUTER axle shaft with ABS Tone Ring
(1) INNER axle shaft
(1) UNIVERSAL JOINT
Fully Assembled and ready to install.
Comes with BUSHING factory installed in 15 spline end of inner axle
- This bushing is required for proper alignment of inner axle shaft with intermediate shaft for smooth operation of disconnect coupler

DIMENSIONS:

Dimension "A" = 25.36 inches
Dimension "B" = 7.05
Dimension "B1" = 1.41 inch diameter with 33 splines
Dimension "C1" = 1.60 inch diameter with 15 Splines
Dimension "C" = 18.31 inches
U-Joint Snap Ring Dimension = 3 inches
U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )

DANA SPICER 76627X Complete RIGHT SIDE ABS Axle Assembly with 15 SPLINE Inner fits 1994, 1995, 1996, 1997, 1998, 1999 DODGE Ram 2500HD and Ram 3500 with DANA 60 DISCONNECT Front Axle - FREE SHIPPING
