DANA SPICER 76628X Complete LEFT SIDE ABS Axle Assembly with 30 SPLINE Inner fits 1994, 1995, 1996, 1997, 1998, 1999 DODGE Ram 2500HD and Ram 3500 with DANA 60 DISCONNECT Front Axle

DANA SPICER 76628X Complete LEFT SIDE ABS Axle Assembly with 30 SPLINE Inner fits 1994, 1995, 1996, 1997, 1998, 1999 DODGE Ram 2500HD and Ram 3500 with DANA 60 DISCONNECT Front Axle - FREE SHIPPING

Part Number:
76628X

UPC:

023913135195

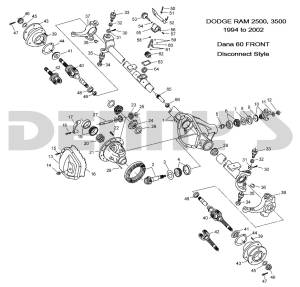

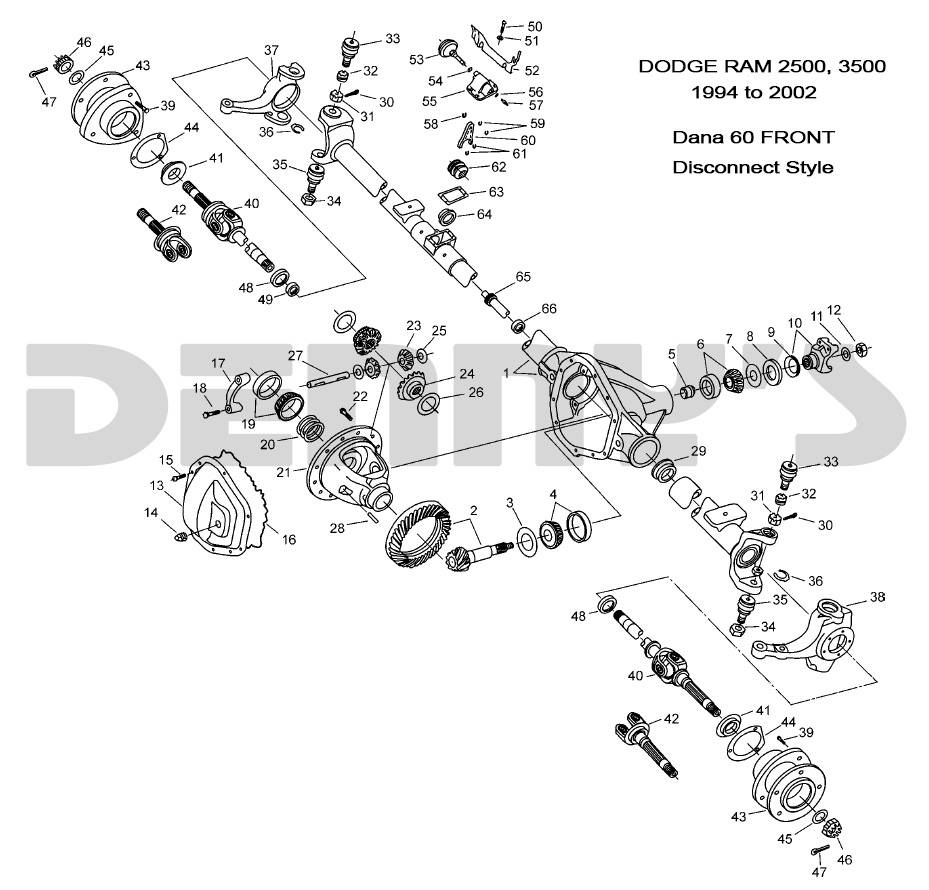

Diagram Number:
40

Your Cost $329.87

Sorry, sold out

STATUS: Discontinued Item...See other choices listed

DANA SPICER 76628X

Complete LEFT Front Axle Assembly fits Drivers Side

Fits 1994, 1995, 1996, 1997, 1998, 1999 Dodge RAM 2500HD and 3500 4x4 with DANA 60 DISCONNECT AXLE
ABS tone ring on outer stub axle
30 spline inner

DANA SPICER 76628X Complete LEFT SIDE ABS Axle Assembly with 30 SPLINE Inner fits 1994, 1995, 1996, 1997, 1998, 1999 DODGE Ram 2500HD and Ram 3500 with DANA 60 DISCONNECT Front Axle - FREE SHIPPING

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: Discontinued Item...See other choices listed

YOUR COST: $329.87

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

DANA SPICER 76628X

Complete LEFT Front Axle Assembly fits Drivers Side

Fits 1994, 1995, 1996, 1997, 1998, 1999 Dodge RAM 2500HD and 3500 4x4 with DANA 60 DISCONNECT AXLE
ABS tone ring on outer stub axle
30 spline inner

INCLUDES:

(1) OUTER axle shaft with ABS Tone Ring
(1) INNER axle shaft
(1) UNIVERSAL JOINT
Fully Assembled and ready to install.

DIMENSIONS:

Dimension "A" = 25.64 inches
Dimension "B" = 7.05
Dimension "B1" = 1.41 inch diameter with 33 splines
Dimension "C1" = 1.30 inch diameter with 30 Splines
Dimension "C" = 18.59 inches
U-Joint Snap Ring Dimension = 3 inches
U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )

DANA SPICER 76628X Complete LEFT SIDE ABS Axle Assembly with 30 SPLINE Inner fits 1994, 1995, 1996, 1997, 1998, 1999 DODGE Ram 2500HD and Ram 3500 with DANA 60 DISCONNECT Front Axle - FREE SHIPPING
