Fits 3.219 x 1.062 - 1310 series

9131104 Pinion Yoke KIT 1310 Series 28 splines 5 inches tall fits Ford 9 inch rear end 3.219 x 1.062 u-joint

Part Number:
9131104

UPC:

Your Cost $115.95

STATUS: IN STOCK - FREE SHIPPING

9131104

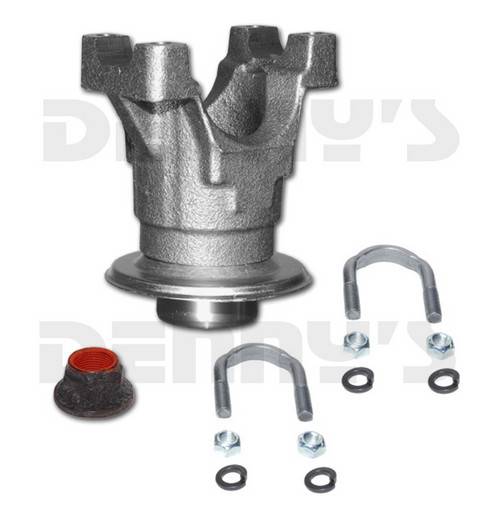

Ford 9 inch Pinion Yoke KIT
- Fits all Ford 9 inch rear ends with 28 spline pinion gear
- INCLUDES: u-bolt set and pinion nut
1310 series - 3.219 x 1.062 inch
28 splines
5 inches tall
U-Bolt style

Fits universal joint 3.210 cap to cap with 1.062 Bearing caps

DIMENSIONS

SPLINE OD = 1.235
D = 1.062
E = 3.219
Q = 2.42
R = 1.81
S = 5.03

TIP: You can also use this 5 inch tall pinion yoke to replace your 4 inch tall pinion yoke when you need to get your slip yoke into the transmission 1 inch further. Ideal way to get that extra inch that you need when the driveshaft is a bit too short.

9131104 Pinion Yoke KIT 1310 Series 28 splines 5 inches tall fits Ford 9 inch rear end 3.219 x 1.062 u-joint

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $115.95

9131104

Ford 9 inch Pinion Yoke KIT
- Fits all Ford 9 inch rear ends with 28 spline pinion gear
- INCLUDES: u-bolt set and pinion nut
1310 series - 3.219 x 1.062 inch
28 splines
5 inches tall
U-Bolt style

Fits universal joint 3.210 cap to cap with 1.062 Bearing caps

DIMENSIONS

SPLINE OD = 1.235
D = 1.062
E = 3.219
Q = 2.42
R = 1.81
S = 5.03

9131104 Pinion Yoke KIT 1310 Series 28 splines 5 inches tall fits Ford 9 inch rear end 3.219 x 1.062 u-joint
