Dana Spicer DB170C54005C Ready Pack Driveshaft Kit SPL170 series mid-ship carrier bearing style coupling shaft fits 5.059 x 0.167 wall tube

Part Number:
DB170C54005C

UPC:

023913855598

Your Cost $687.62

STATUS: FACTORY DIRECT - SPECIAL ORDER

Dana Spicer DB170C54005C

Ready Pack Driveshaft Kit in a Box

SPL170 series

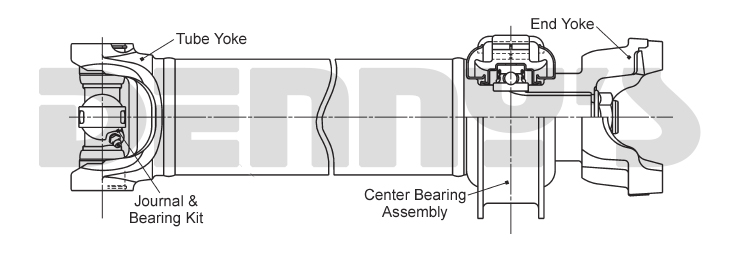

Mid-ship carrier bearing style coupling shaft
All the parts you need to repair, rebuild or make a new SPL170 driveshaft
- Use on driveshaft base part number 170CS54005C
- Note: 5.059 OD - 0.167 wall Tubing is NOT included in the kit

Dana Spicer DB170C54005C Ready Pack Driveshaft Kit SPL170 series mid-ship carrier bearing style coupling shaft fits 5.059 x 0.167 wall tubing

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: FACTORY DIRECT - SPECIAL ORDER

YOUR COST: $687.62

>>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<

Dana Spicer DB170C54005C

Ready Pack Driveshaft Kit in a Box

SPL170 series
Mid-ship carrier bearing style coupling shaft
All the parts you need to repair, rebuild or make a new SPL170 driveshaft
- Use on driveshaft base part number 170CS54005C
- Note: 5.059 OD - 0.167 wall Tubing is NOT included in the kit
  - See tubing part number 120-30-4-3900 for a 39 inch length
  - See tubing part number 120-30-4-7300 for a 73 inch length

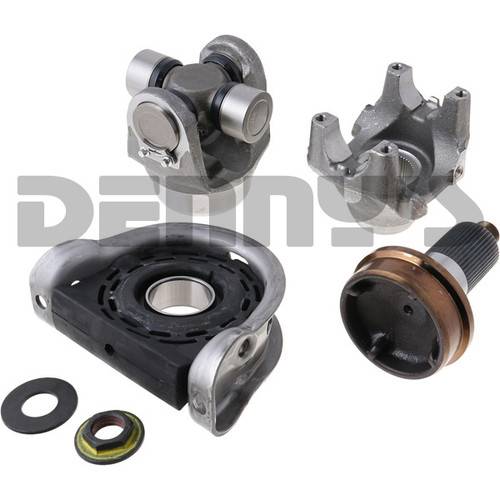

DB170C54005C Kit includes the following parts:

(1) SPL170-4X Universal Joint
(1) 170-28-17 Weld Yoke to fit 5.059 x 0.167 wall tubing
(1) 250-53-11 Stub Shaft for center support bearing to fit 5.059 x 0.167 wall tubing
(1) 10094142 Support Bearing
(1) 170-4-1271-1 End Yoke
(1) 250-74-11 Nut
(1) 230123-6 Washer

Note: 5.059 OD - 0.167 wall Tubing is NOT included in the kit

Dana Spicer DB170C54005C Ready Pack Driveshaft Kit SPL170 series mid-ship carrier bearing style coupling shaft fits 5.059 x 0.167 wall tubing

You May Also Need These Parts to Complete the Job

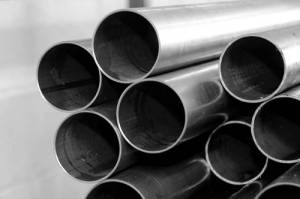

5.059 x .167 DANA SPICER 120-30-4-3900 DOM DRIVESHAFT TUBING - 39 INCH LENGTH
Part#: 120-30-4-3900

$66.53

5.059 x .167 DANA SPICER 120-30-4-7300 DOM DRIVESHAFT TUBING - 73 INCH LENGTH
Part#: 120-30-4-7300

$184.81
