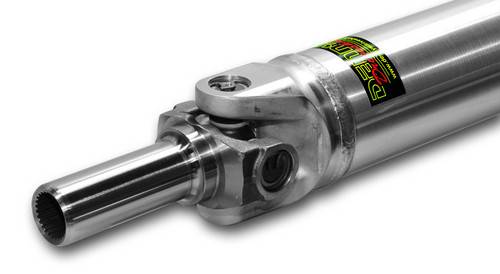

Denny's AL3.5-1310-62 Aluminum Driveshaft 3.5 inch tube diameter complete with Dana Spicer U-joints and 1310 slip yoke UP to 62 inch CL

Part Number:
AL3.5-1310-62

UPC:

Your Cost $725.95

STATUS: CUSTOM BUILT - 5 WEEK BACKLOG ON NEW ORDERS

Denny's AL3.5-1310-62

Aluminum Driveshaft 3.5 inch with 1310 Slip Yoke

Includes:

3.5 inch Diameter Tube - 0.125 wall thickness - KDS4-T8 ALUMINUM - Surpasses ASTMB210 specification
Spicer or Neapco 1310 series cast SLIP YOKE
Dana Spicer NON Greaseable Universal Joints
- FRONT universal joint 1310 series to match slip yoke
- REAR universal joint can be 1310, 1330, 1350, 7260, 7290, 3R to match your rear end pinion yoke.
All Denny's Driveshafts are High Speed - High RPM Balanced and Tested for smooth operation
Comes Fully Assembled and ready to bolt in!

Denny's AL3.5-1310-63 Aluminum Driveshaft 3.5 inch tube diameter complete with Dana Spicer U-joints and 1310 slip yoke UP to 62 inch CL

STATUS: CUSTOM BUILT - 5 WEEK BACKLOG ON NEW ORDERS

YOUR COST: $725.95

Denny's AL3.5-1310-62

Aluminum Driveshaft 3.5 inch with 1310 Slip Yoke

Includes:

3.5 inch Diameter Tube - 0.125 wall thickness - KDS4-T8 ALUMINUM - Surpasses ASTMB210 specification
- All Denny's Driveshafts are assembled using the latest computer controlled welding equipment for the strongest welds possible.
Spicer or Neapco 1310 series cast SLIP YOKE
- Available to fit all 27 and 32 spline GM automatic transmissions
- Available to fit all 27 and 32 spline Muncie, Borg Warner, AutoGear, Saginaw, Richmond
- Available to fit 28 spline Ford C4 and AOD automatics (NOT available in 1310 for 4R70W see 1330 shafts)
- Available to fit 28 spline T5, T10, Top Loader, Tremec
- Available to fit 31 spline Ford C6, FMX, Top Loader, Tremec
Dana Spicer NON Greaseable Universal Joints
- FRONT universal joint 1310 series to match slip yoke
- REAR universal joint can be 1310, 1330, 1350, 7260, 7290, 3R to match your rear end pinion yoke.
  - Flat Flange Yoke option available for Ford 8.8 and JAG rear
All Denny's Driveshafts are High Speed - High RPM Balanced and Tested for smooth operation. This is priceless when it comes to customer satisfaction!
All Denny's Driveshafts come Fully Assembled and ready to bolt in!

- Denny's Free Lifetime Labor means for example if you ever need it shortened, re-balanced, change u-joints....the Labor is FREE
  - Please see our Free Lifetime Labor page for details. CLICK HERE

MEASUREMENTS ARE REQUIRED TO ORDER THIS SHAFT
- Please click on the button below and print out the diagram.
- Please call or email the dimensions to us when you place your order.

>>>>>> For u-bolt or strap and bolt style pinion yokes:

MAXIMUM LENGTH:

IMPORTANT NOTE:

Denny's AL3.5-1310-62 can be made with an optional flat flange yoke if necessary to match your rear end.
For example is using a Ford 8.8 or a Jag rear end with the flat flange instead of a pinion yoke.
- PLEASE CALL or EMAIL for price before ordering.

>>>>>> For FLAT FLANGE style on Ford 8.8 or JAG rear:

MAXIMUM LENGTH:

DIAGRAM "K" Number "55" should be approximately 67 inches or less.
- CLICK HERE to see Diagram "K" now
DIAGRAM "L" ...we will also need NUMBERS 58, 59 and 60 on this page to build your order
- CLICK HERE to see Diagram "L" now

OVERSIZE PACKAGE: Sorry ... this item DOES NOT qualify for Free Shipping!

Denny's AL3.5-1310-63 Aluminum Driveshaft 3.5 inch tube diameter complete with Dana Spicer U-joints and 1310 slip yoke UP to 62 inch CL
