Mopar Cars & Trucks > UNIVERSAL JOINTS > 7290 Series

Dana Spicer 5-811X Universal Joint NON Greaseable 7290 series DODGE, Plymouth, Chrysler, Mopar INSIDE CLIPS

Part Number:
5-811X

UPC:

023913121235

Your Cost $19.16

STATUS: IN STOCK

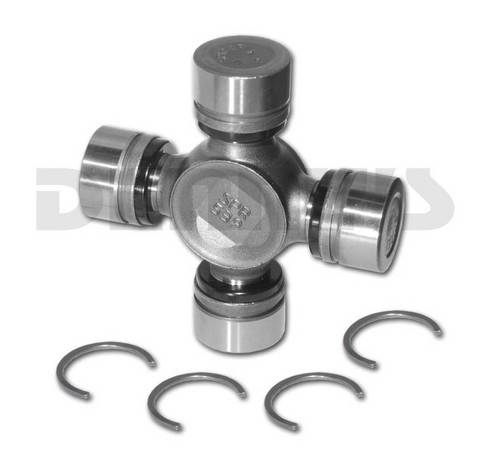

Dana Spicer 5-811X

NON Greaseable Universal Joint

Fits Dodge, Plymouth, Chrysler, Mopar with 7290 series driveshaft
7290 series dimensions
- INSIDE "C" Clip Style universal joint
- A = 2.625 inches (2-5/8) between the yoke inner surfaces where the Inside "C" Clips lock in
- B = 2.625 inches (2-5/8) between the yoke inner surfaces where the Inside "C" Clips lock in
- C = 1.125 inch (1-1/8) diameter Bearing Caps
- D = 1.125 inch (1-1/8) diameter Bearing Caps
- U-Joint is approximately 3-5/8 inch cap to cap

See bottom this page for 7290 series Greaseable version

Spicer

Dana Spicer 5-811X Universal Joint NON Greaseable 7290 series DODGE, Plymouth, Chrysler, Mopar INSIDE CLIPS

Dana Spicer 5-811X Universal Joint NON Greaseable 7290 series DODGE, Plymouth, Chrysler, Mopar INSIDE CLIPS

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $19.16

Dana Spicer 5-811X

NON Greaseable Universal Joint

Fits Dodge, Plymouth, Chrysler, Mopar with 7290 series driveshaft
7290 series dimensions
- INSIDE "C" Clip Style universal joint
- A = 2.625 inches (2-5/8) between the yoke inner surfaces where the Inside "C" Clips lock in
- B = 2.625 inches (2-5/8) between the yoke inner surfaces where the Inside "C" Clips lock in
- C = 1.125 inch (1-1/8) diameter Bearing Caps
- D = 1.125 inch (1-1/8) diameter Bearing Caps
- U-Joint is approximately 3-5/8 inch cap to cap

See bottom this page for 7290 series Greaseable version

image/jpeg

Dana Spicer 5-811X Universal Joint NON Greaseable 7290 series DODGE, Plymouth, Chrysler, Mopar INSIDE CLIPS

Dana Spicer 5-811X Universal Joint NON Greaseable 7290 series DODGE, Plymouth, Chrysler, Mopar INSIDE CLIPS

You May Also Need These Parts to Complete the Job

Dana Spicer 5-1309X Greaseable Universal Joint 7290 series Dodge, Plymouth, Chrysler, Mopar INSIDE CLIPS

Dana Spicer 5-1309X Greaseable Universal Joint 7290 series Dodge, Plymouth, Chrysler, Mopar INSIDE CLIPS
Part#: 5-1309X

$21.70
