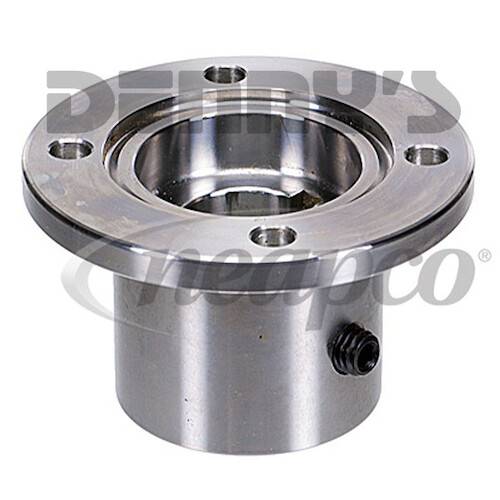

Neapco N10-1-1022-2 Power Take Off Companion Flange 1000 series Fits 1.125 inch Round Shaft with .250 KEY
|
Part Number: N10-1-1022-2
|
Your Cost
$159.95
STATUS:
IN STOCK
|
|
Neapco N10-1-1022-2
COMPANION FLANGE for power take off applications
- SERIES 1000
- P - FITS 1.125 INCH DIAMETER SHAFT
- C - FEMALE PILOT DIAMETER - 2.250 INCHES
- X - KEYWAY WIDTH - .250 INCHES
- W - KEYWAY LOCATION - 12
- W - SET SCREW THREAD DIAMETER - .375 INCHES
- W - SET SCREW LOCATION - 9
- R - HUB DIAMETER -
- F - LENGTH THROUGH HOLE -
- G - FLANGE FACE TO END OF HUB - 2.125 INCHES
- A - TOTAL SWING DIAMETER - 3.50 INCHES
- B - BOLT CIRCLE DIAMETER - 2.75 INCHES
- 4 BOLT HOLES - 0.328 IN. DIAMETER
UPC: 083869018485
Part Number: N10-1-1022-2
|
Neapco N10-1-1022-2 Power Take Off Companion Flange 1000 series Fits 1.125 inch Round Shaft with .250 KEY
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: IN STOCK
YOUR COST:
$159.95
|
Neapco N10-1-1022-2
COMPANION FLANGE for power take off applications
- SERIES 1000
- P - FITS 1.125 INCH DIAMETER SHAFT
- C - FEMALE PILOT DIAMETER - 2.250 INCHES
- X - KEYWAY WIDTH - .250 INCHES
- W - KEYWAY LOCATION - 12
- W - SET SCREW THREAD DIAMETER - .375 INCHES
- W - SET SCREW LOCATION - 9
- R - HUB DIAMETER -
- F - LENGTH THROUGH HOLE -
- G - FLANGE FACE TO END OF HUB - 2.125 INCHES
- A - TOTAL SWING DIAMETER - 3.50 INCHES
- B - BOLT CIRCLE DIAMETER - 2.75 INCHES
- 4 BOLT HOLES - 0.328 IN. DIAMETER
|
|
Neapco N10-1-1022-2 Power Take Off Companion Flange 1000 series Fits 1.125 inch Round Shaft with .250 KEY
|
|
