9400022 Pinion Yoke KIT 3R series fits 1966 to 1971 Buick GS/Gran Sport with 8.2 inch BOP rear end with 27 spline pinion and bolt in style axles

Part Number:
9400022

UPC:

Your Cost $138.55

STATUS: IN STOCK - FREE SHIPPING

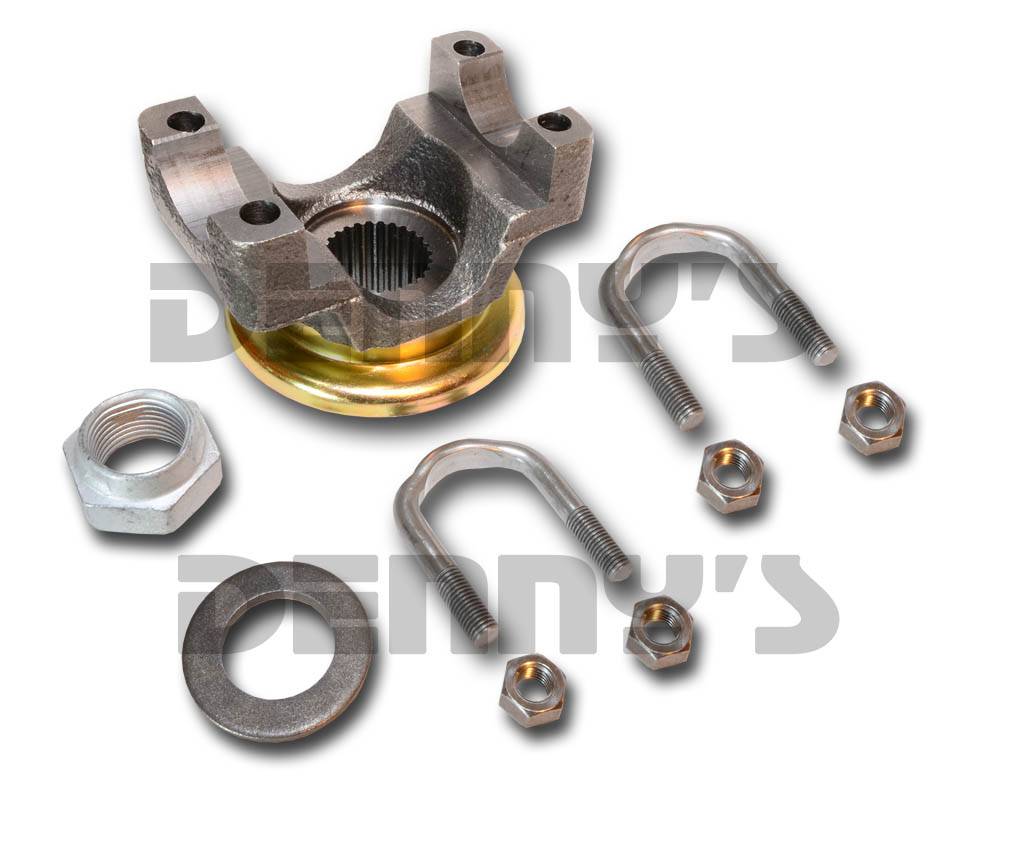

9400022

3R SERIES PINION YOKE
- INCLUDES - pinion nut, washer and u-bolt set
27 spline
U-Bolt style
Fits 1966 to 1971 Buick GS/Gran Sport with BOP rear axle housing with bolt in style axles
- Commonly known as the BOP Rear End (Buick-Olds-Pontiac)
1.942 seal surface diameter
- DOES NOT FIT early BOP housings that originally had a pinion yoke with the 1.642 seal surface diameter

9400022 Pinion Yoke KIT 3R series fits 1966 to 1971 Buick GS/Gran Sport with 8.2 inch BOP rear end with 27 spline pinion and bolt in style axles

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $138.55

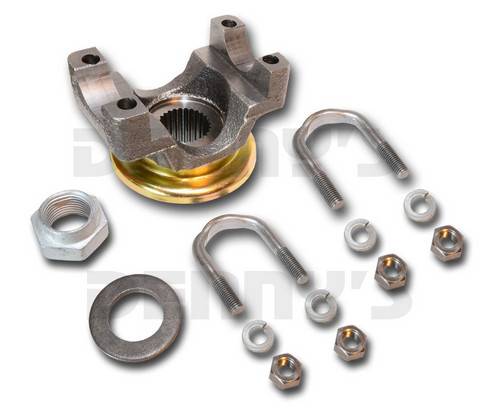

9400022

3R SERIES PINION YOKE
- INCLUDES - pinion nut, washer and u-bolt set
Fits 1966 to 1971 Buick GS/Gran Sport with BOP rear axle housing with bolt in style axles
- Commonly known as the BOP Rear End (Buick-Olds-Pontiac)

Fits the following vehicles with 8.2 inch BOP rear axle with 27 spline pinion

Olds F-85, Cutlass, 4-4-2
- 1966, 1967, 1968, 1969, 1970, 1971
Tempest/GTO
- 1966, 1967, 1968, 1969, 1970, 1971
Firebird
- 1967, 1968, 1969, 1970, 1971
Buick GS/Gran Sport
- 1966, 1967, 1968, 1969, 1970, 1971

NOTE: You must be careful if you have a 1971 or 1972 because the rear end can be either the 8.2 inch BOP with 27 spline pinion or the 8.5 inch Corporate 10 bolt with 30 spline pinion

Dimensions

U-Bolt Style to match original equipment
27 splines
Designed for 3R Series universal Joint
- #24 = 2.556 inches (approx 2 9/16) is the distance between the yoke inner surfaces where the "C" Clips lock
- #22 = 1.125 inches (1 1/8) is the diameter of the u-joint bearing caps that fits into pinion yoke
#25 = 1.942 seal surface diameter
- DOES NOT FIT early BOP housings that originally had a pinion yoke with the 1.642 seal surface diameter
#21A = 2 7/8 inches tall

9400022 Pinion Yoke KIT 3R series fits 1966 to 1971 Buick GS/Gran Sport with 8.2 inch BOP rear end with 27 spline pinion and bolt in style axles
Click Here to Enlarge	Click Here to Enlarge
