Denny's Ford Mustang Driveshaft 3 inch 1330 series custom built with 28 spline transmission slip yoke, Spicer universal joints and large bolt pattern flange yoke

Mustang 3 inch Driveshaft 1330 Series to fit all 7.5 inch and 8.8 inch with LARGE bolt pattern flat flange

Part Number:
HD3-1330MFL

UPC:

Your Cost $590.95

STATUS: PLEASE CALL TO ORDER

MUSTANG 3 Inch HD Steel Driveshaft 1330 Series with flange yoke

3 inch Steel DOM Tubing custom built driveshaft complete with 28 or 31 spline transmission slip yoke and Spicer universal joints to connect to any 1330 series flat flange on Ford 7.5 inch or Ford 8.8 inch Rear End
Fits all with LARGE bolt pattern flange

Mustang 3 inch Driveshaft 1330 Series to fit all 7.5 inch and 8.8 inch with LARGE bolt pattern flat flange

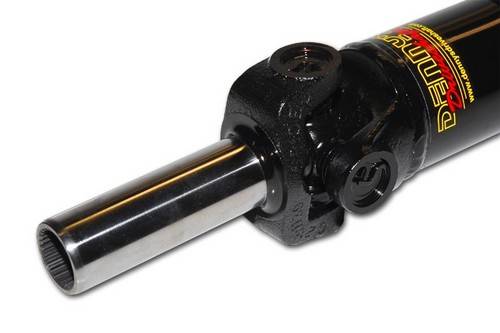

Click for Larger Photo

STATUS: PLEASE CALL TO ORDER

YOUR COST: $590.95

Mustang Driveshaft 3 inch Steel DOM Tubing

COMPLETE Fully Assembled High Speed High RPM Balanced Driveshaft including 28 or 31 spline transmission slip yoke, Spicer u-joints and flange yoke custom built to fit your Mustang

3 Inch DOM Steel Tubing
High Speed High RPM Balanced and Tested to be sure it will perform smoothly at all road speeds
Maintenance Free Spicer U-joints...High Mileage and No Messy Grease Splatter
For use in Mustangs with less than 700 horsepower.
Maximum center to center is 52 inches
Fits Ford 7.5 inch and Ford 8.8 inch rear end with LARGE bolt pattern...3 inch by 3 inch bolt pattern

DENNY'S 3 inch Ford Mustang DRIVESHAFTS can be built to connect the transmissions listed below to any 1330 series Ford 7.5 inch or Ford 8.8 inch rear end.

All FORD 28 spline Manual or Automatic transmissions
All FORD 31 spline Manual or Automatic transmissions

PLEASE SPECIFY: Model name or number of your transmission and also the spline count of the output shaft when ordering.

MEASUREMENTS REQUIRED TO ORDER THIS SHAFT

CLICK HERE to View and Print DIAGRAM "K"
- On Diagram "K" your overall length dimension "Number 55" should be approximately 57 inches or less

OVERSIZE PACKAGE: Sorry ... this item DOES NOT qualify for Free Shipping!

Mustang 3 inch Driveshaft 1330 Series to fit all 7.5 inch and 8.8 inch with LARGE bolt pattern flat flange
