Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck


Driveshaft and Driveline Parts > PARTS - NEAPCO by Part Number

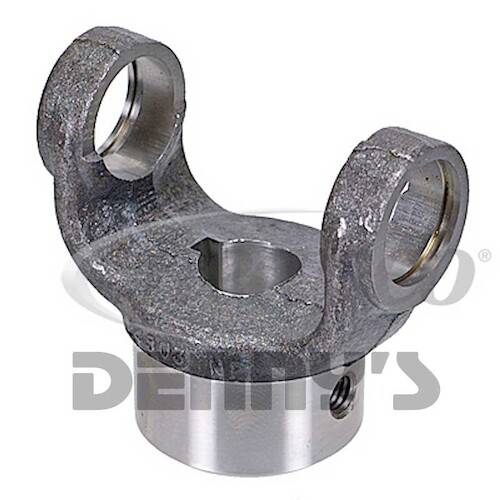

Neapco N2-4-583 PTO end yoke 0.875 round shaft with 0.250 key 1310 series
Part Number:
N2-4-583


UPC:
083869015903
 Your Cost $61.95
STATUS:  IN STOCK

Neapco N2-4-583

PTO End Yoke

  • 1310 series
  • 0.875 round bore
  • 0.250 key
  • 0.375 set screw
  • outside snap ring style
Neapco
Neapco N2-4-583 PTO end yoke 0.875 round shaft with 0.250 key 1310 series
Neapco N2-4-583 PTO end yoke 0.875 round shaft with 0.250 key 1310 series
Click for Larger Photo
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $61.95

Neapco N2-4-583

PTO End Yoke

  • 1310 series
  • 0.875 round bore
  • 0.250 key
  • 0.375 set screw
  • outside snap ring style
End Yokes - Round Bore
 Model/Part #:  N2-4-583
Bore
 0.875
R) Hub Dia. 2.000
Set Screw Dia. 0.375
E) Dimension for outside snap ring lockup 3.219
D) Bore dimension for u-joint cap 1.062
Keyway 0.250
S) C/L to Hub End 2.562
Q) Length through hole 1.625

How to measure a PTO end yoke at Denny's Driveshafts
Neapco N2-4-583 PTO end yoke 0.875 round shaft with 0.250 key 1310 series

Neapco N2-4-583 PTO end yoke 0.875 round shaft with 0.250 key 1310 series
