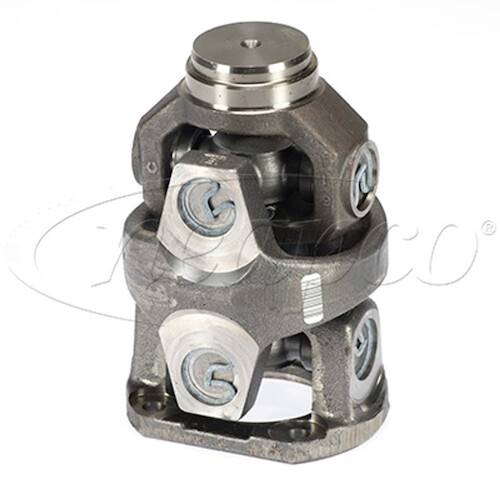

Neapco N924141G Double Cardan CV Head

Neapco N924141G standard 22 degree joint angle Double Cardan CV Head assembly with stud yoke 1410/1415 series fits 2.500 x 0.120 wall tube 4.250 bolt circle 3.125 pilot

Part Number:
N924141G

UPC:

083869030876

Your Cost $268.95

Sorry, sold out

CLICK HERE to be NOTIFIED when this item is available

STATUS: SOLD OUT...More Coming Soon

Neapco N924141G

1410/1415 series Double Cardan CV Head 22 degree joint angle

STUD YOKE Fits 2.500 OD x 0.120 wall tube

Bolt Circle (In): 4.250

Butt Diameter (In): 2.258

Center Line To Center Line Of H Yoke (In): 3.484

Center Line To Point Of Weld (In): 2.094

Cv Head Style: Flange

Driveline Series: 1410/1415

Hole Dia./Thread Size (In)(Mm): 0.469

Joint Angle (Degrees): 22.0 max

Overall Length (In): 7.32

Pilot Diameter (In)(Mm): 3.125

Tubing Diameter And Wall (In): 2.500 X 0.120

Neapco N924141G standard 22 degree joint angle Double Cardan CV Head assembly with stud yoke 1410/1415 series fits 2.500 x 0.120 wall tube 4.250 bolt circle 3.125 pilot

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: SOLD OUT...More Coming Soon

YOUR COST: $268.95

Neapco N924141G

1410/1415 series Double Cardan CV Head 22 degree joint angle

STUD YOKE Fits 2.500 OD x 0.120 wall tube

Bolt Circle (In): 4.250

Butt Diameter (In): 2.258

Center Line To Center Line Of H Yoke (In): 3.484

Center Line To Point Of Weld (In): 2.094

Cv Head Style: Flange

Driveline Series: 1410/1415

Hole Dia./Thread Size (In)(Mm): 0.469

Joint Angle (Degrees): 22.0 max

Overall Length (In): 7.32

Pilot Diameter (In)(Mm): 3.125

Tubing Diameter And Wall (In): 2.500 X 0.120

Neapco N924141G standard 22 degree joint angle Double Cardan CV Head assembly with stud yoke 1410/1415 series fits 2.500 x 0.120 wall tube 4.250 bolt circle 3.125 pilot
