Dana Spicer 3-4-8691-1X Pinion Yoke 1350 Series Chevy and GM fits 8.5 inch 10 Bolt 30 spline Strap and Bolt style

Part Number:
3-4-8691-1X

UPC:

023913231095

Your Cost $88.95

STATUS: IN STOCK

Dana Spicer 3-4-8691-1X

Chevy and GM Corporate 8.5 inch 10 bolt 1350 series pinion yoke strap and bolt style

Dana Spicer 3-4-8691-1X Pinion Yoke 1350 Series Chevy and GM fits 8.5 inch 10 Bolt 30 spline Strap and Bolt style

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $88.95

Dana Spicer 3-4-8691-1X

Chevy and GM Corporate 8.5 inch 10 bolt 1350 series pinion yoke Strap and Bolt style

This is the least expensive way to upgrade your Chevy or GM Corporate 8.5 inch 10 bolt pinion yoke. 8.5 inch 10 bolt 1350 series pinion yoke Strap and Bolt style

1350 Series Pinion Yoke
Strap and Bolt style
30 splines

Genuine Dana Spicer Pinion Yoke
Fits 1350 series u-joint 3.625 inches (3 5/8) wide with 1.188 inches (1 3/16) bearing cap diameter
1350 series
30 SPLINE
SPLINE OD = 1.312
D = 1.188
E = 3.625
Q = 1.156
R = 1.938
S = 3.125

Dana Spicer 3-4-8691-1X Pinion Yoke 1350 Series Chevy and GM fits 8.5 inch 10 Bolt 30 spline Strap and Bolt style

You May Also Need These Parts to Complete the Job

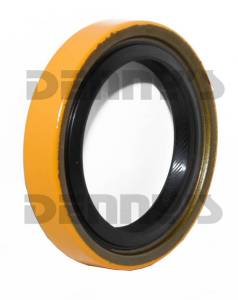

8510 PINION NUT and WASHER Set fits GM 8.5 inch and 8.6 inch 10 BOLT Part#: 8510 $4.95	Timken 2043 Pinion seal for GM 8.5 Inch 10 Bolt Rear End Part#: 2043 $10.95
Neapco 2-0053G universal joint 1350 Series non greaseable 3.622 x 1.188 Part#: 2-0053G ~~$24.10~~ $22.95	Dana Spicer 5-178X Greaseable u-joint 1350 Series Part#: 5-178X $20.95
Dana Spicer 5-1350-1X GREASEABLE Universal Joint 1350 Series fitting in end of bearing cap Part#: 5-1350-1X $32.60	Dana Spicer 5-1350X Universal Joint NON Greaseable 1350 series cold forged solid body heat treated precision ground and case hardened with multi lip seals Part#: 5-1350X $23.54

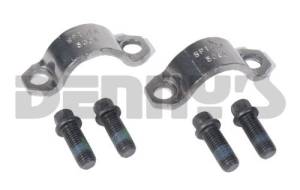

DANA SPICER 5-3615X Universal Joint 1350 Series COATED for ALUMINUM DRIVESHAFTS Part#: 5-3615X $37.25	DANA SPICER 3-70-28X Strap and Bolt set fits 1350/1410 series Dana 60, 61, 70, 80 rear end yokes designed for 1.187 diameter u-joint bearing caps Part#: 3-70-28X $7.95
